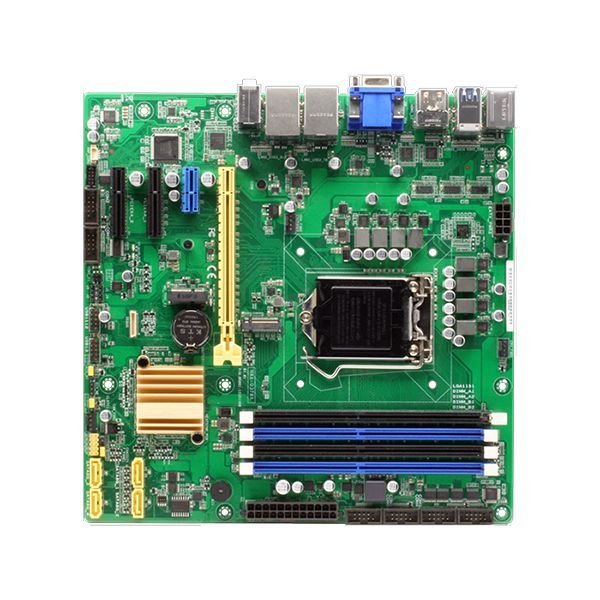

Mainboard AAEON MAX-Q370A-A20-210

SYSTEM

PROCESSOR

8th/9th Generation Intel® (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5/ i3, Pentium™ 14nm LGA 1151 socket processor, max. TDP 8 Core 95W

CHIPSET

Intel® Q370 Express Chipset

MEMORY

DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 128GB)
non-ECC, un-buffered memory
Dual-channel memory architecture

I/O CHIPSET

NCT6793D+ F81216HD

ETHERNET

Intel® PHY i219LM Gb LAN (supports Intel® AMT 12.0) x 1
Intel® i210AT Gb LAN x 1
RJ45 x 2

AUDIO

Realtek® ALC897 6-Channel High Definition Audio CODEC

TPM

Nuvoton NPCT750 TPM2.0 onboard

EXPANSION SLOT

PCIe 3.0[x16] Slot x 1
PCIe 3.0[x4] Slot (open edge) x 2
PCIe 3.0[x1] Slot (open edge) x 1
M.2 2230 E-key (PCIe/USB) x 1
M.2 2280 M-key (PCIex4/SATA3) x 1

BIOS

256Mbit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V,
Fan Monitor on CPU/Chassis

WATCHDOG TIMER

1~255 steps by software program

SMART FAN CONTROL

CPU Fan/ Chassis Fan x 2

WAKE ON LAN/ PXE

Yes (WOL / PXE)

POWER STATE

S3, S4, S5
