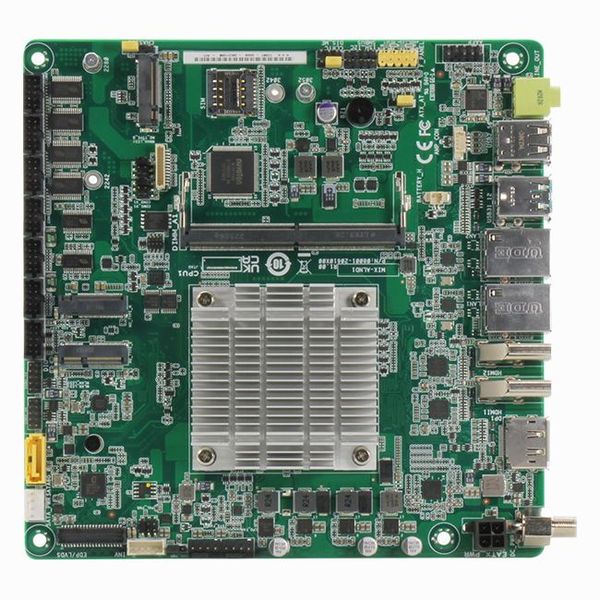

Mainboard AAEON MIX-ALND1 CPU N97

SYSTEM

PROCESSOR

Intel® Processor N97

CHIPSET

SoC

MEMORY

Single-Channel DDR5 4800MHz SODIMM x 1 (Non-ECC, Max. 16GB)

I/O CHIPSET

NCT6126D

ETHERNET

Realtek 8111H x 2

AUDIO

Realtek® ALC897 with Amp.

TPM

fTPM (TPM chip by BOM optional)

EXPANSION SLOT

M.2 3042/3052 B-Key x 1 (PCIe [x1], SATA, USB 3.2 Gen 1/USB 2.0) with SIM socket
M.2 2230 E-Key x 1 (PCIe [x1], USB 2.0)

BIOS

256Mbit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V, Fan Monitor on CPU/Chassis

WATCHDOG TIMER

1~255 steps by software program

SMART FAN CONTROL

CPU Fan/Chassis Fan

WAKE ON LAN/ PXE

Yes (WOL/PXE)

POWER STATE

S3, S4, S5
