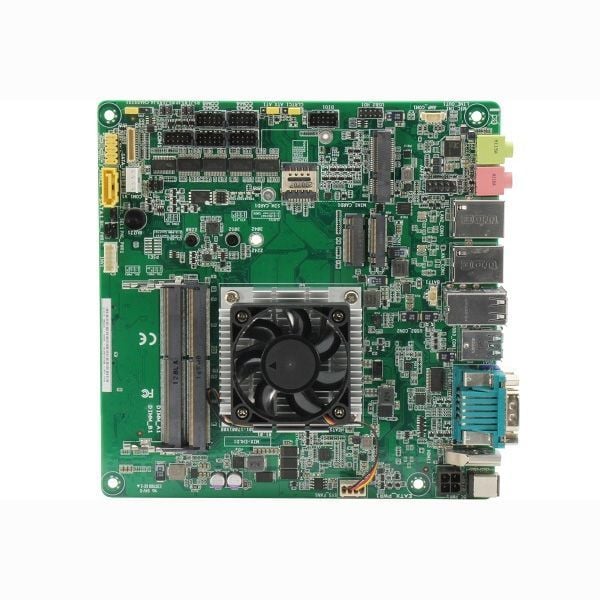

Mainboard AAEON MIX-EHLD1 CPU Celeron J6412

PROCESSOR

Intel Elkhart Lake Processor, Max. 12W TDPs
Celeron J6412

MEMORY

SO-DIMM, max. 32GB , DDR4 3200MTS x 2

I/O CHIPSET

NCT6126D

ETHERNET

RTL8111H x 2

AUDIO

Realtek® ALC897

TPM

Nuvoton NPCT750 TPM2.0 onboard

EXPANSION SLOT

M.2 Slot (B key; 3042/3052) x1
mini-PCIe(Full/Half) ) x 1
SIM socket x 1(default for B-key)

BIOS

256Mbit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on Chassis

WATCHDOG TIMER

1~255 step by software program

SMART FAN CONTROL

Chassis Fan

WAKE ON LAN/ PXE

Yes (WOL / PXE)

POWER STATE

S3, S4, S5
