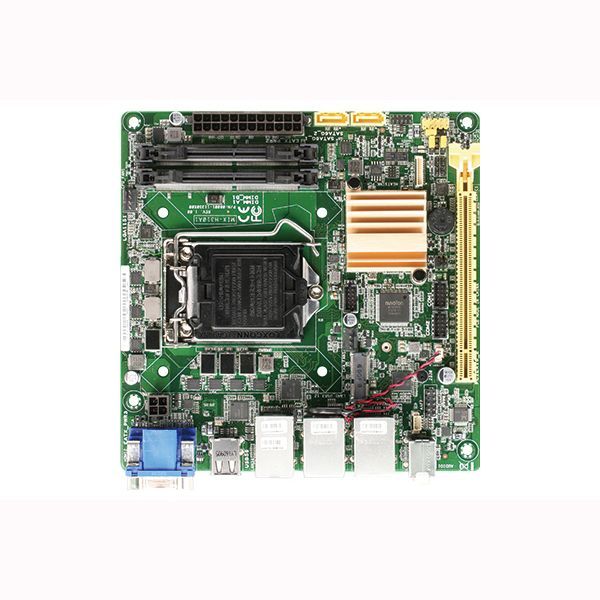

Mainboard AAEON MIX-H310A1 LAN x2

SYSTEM

PROCESSOR

8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs

CHIPSET

Intel® H310 Express Chipset

MEMORY

DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture

I/O CHIPSET

NCT6793D

ETHERNET

Intel® PCIe Gb LAN 219V x 1, Intel® PCIe Gb LAN i210AT x 1

AUDIO

Realtek® ALC897 with Amp.

TPM

Firmware TPM

EXPANSION SLOT

PCIe3.0 [x16] x 1, M.2 M-key(22x80mm) at bottom side x 1 for SATA, M.2 E-key(22x30mm)

BIOS

128Mbit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis

WATCHDOG TIMER

1~255 step by software program

SMART FAN CONTROL

CPU Fan/ Chassis Fan

WAKE ON LAN/ PXE

Yes (WOL / PXE)

POWER STATE

S3, S4, S5
