Mainboard AAEON MIX-Q370D1-A12

SYSTEM

PROCESSOR

8th/9th Generation Intel® Core™ i7/ i5 /i3, Pentium® LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs

CHIPSET

Intel® Q370 Express Chipset

MEMORY

SODIMM x 2, Max. 32GB, DDR4 2666/2400 MHz, Non-ECC, Un-buffered
Memory, Dual channel

I/O CHIPSET

NCT6793D

ETHERNET

Intel® PHY i219LM Giga LAN (support Intel® AMT 12.0) x 1
Intel® i210AT Giga LAN x 1

AUDIO

Realtek® ALC897

TPM

Nuvoton TPM version 2.0

EXPANSION SLOT

PCIe 3.0 [x4] x 1

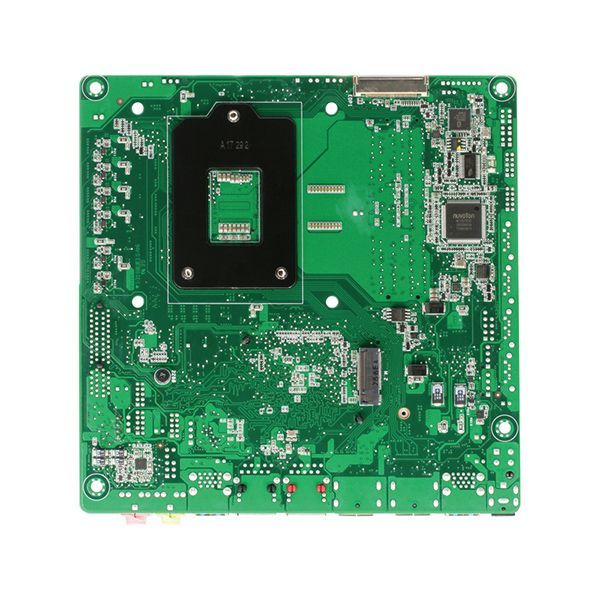

M.2 M key (22 x 80mm) x 1 at Bottom side, SATA & PCIe [x4]
M.2 E key (22 x 30mm) x 1 for Wireless-wifi module (PCIe+USB)

BIOS

256Mbit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on Chassis

WATCHDOG TIMER

1~255 steps by software program

SMART FAN CONTROL

CPU Fan/Chassis Fan

WAKE ON LAN/ PXE

Yes (WOL/PXE)

POWER STATE

S3, S4, S5
