| SYSTEM | |

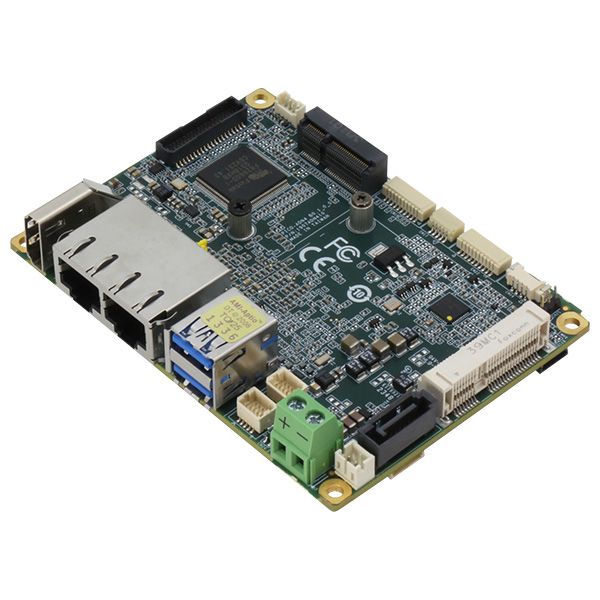

| FORM FACTOR | Pico-ITX |
| CPU | Intel® Processor N97 (4C, 2.00 GHz, 12W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 3.94" x 2.84" (100mm x 72mm) |
| Gross Weight | 0.18 lbs. (0.08 kg) |
| OS Support | Windows 10 (64bit) Ubuntu 22.04.2/Kernel 5.19 |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | 2-pin Phoenix Connector (Default) Lockable DC Jack Connector (colay) |
| POWER CONSUMPTION | TBD |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 12th Gen Intel® Processors |
| LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz eDP 1.4 x 1, 3840 x 2160 @60Hz (Optional) |
| Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
| Multiple Display | Up to 2 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC256 |
| AUDIO INTERFACE | Line-out (Optional, no audio function in WiTAS 2) |
| EXTERNAL I/O | |
| ETHERNET | Intel® I226 2.5GbE, RJ-45 x 1 Realtek RTL8111H-CG, 1GbE, RJ-45 x 1 |
| USB | USB3.2 Gen 2 x 2 |
| VIDEO | HDMI 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 4 |
| SERIAL PORT | COM 1~2 (RS-232/422/485, supports 5V/12V/RI) COM3~4 (RS232) |
| VIDEO | LVDS/eDP x 1 (Default: LVDS) Inverter x 1 (12V/2A) |
| SATA | SATA 6Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Line-out header x 1 (Optional, no audio function in WiTAS 2) |
| DIO/GPIO | GPIO 4-bit |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| FAN | 4 pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| EXPANSION | |
| MINI PCI-E/MSATA | Full-Size mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
| M.2 | M.2 2230 E-Key x 1 |
| Others | — |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | TBD |
| EMC | CE,FCC Class A |
