| SYSTEM | |

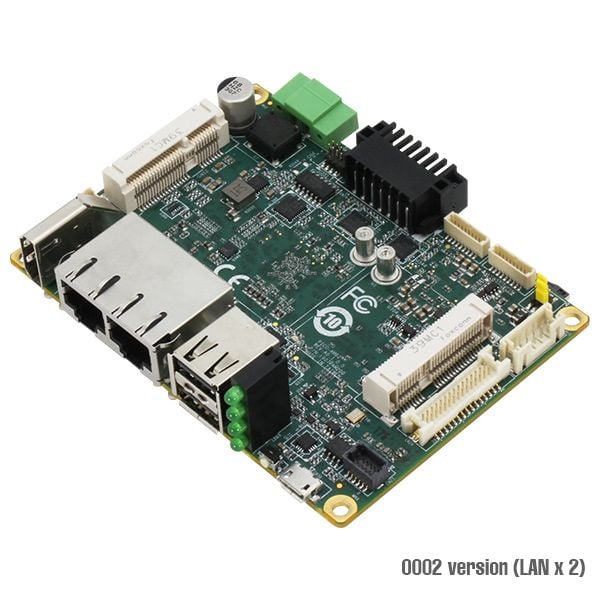

| FORM FACTOR | PICO ITX , 2.5" SBC |
| Processor | ARM TI AM6254, Quad- Core Cortex-A53 1.4GHz Processor |
| Memory | Onboard DDR4 16 bit, default with 2 GB |
| Storage | eMMC 5.1 default with 16 GB Micro SD Card slot x1 |
| Real Time Clock | RTC x 1, with 3V CR2032H Lithium battery |
| Security | TPM 2.0 |
| Indicators | Programmable LED control x 3 |
| Cellular | Full Size Mini Card x 1 (USB signal) |
| Wireless Lan | Half Size Mini Card x 1 (USB signal) |
| Operating System | Debian 12 (Default, GUI is optional) Android 14 |
| Support Protocol | — |
| I/O Interfaces | |
| Serial Port | RS232(2-wire)/422/485 x 2 RS232/422/485 x 2 |
| Ethernet | GbE x 2 support IEEE 1588, TSN, integrated RGMII |
| Audio | Line in / Line Out / Mic x 1 |
| USB | USB 2.0 Gen1 x 2 (rear I/O) -Host/device by image option, default: host x 1 -Host x 1 USB2.0 (Pin Header) x 1 |
| ADC | — |
| DI/DO | — |
| CAN Bus | CAN-FD x 2 CH, Phoenix Connector (optional) |
| Display | HDMI 1.4b up to 1080p x 1 LVDS x 1, dual channel, 18/24bit |
| Power Connector | 2 Pin 3.81mm Pitch Phoenix Connector |
| Debug Port | Micro USB x 1 |
| Expansion Slot | Half Size Mini Card (USB2.0) x 1, power control available by software Full Size Mini Card (USB2.0) x 1, power control available by software SPI x 4 (optional) I2C x 2 (optional) UART x 2 (optional) |
| Other Interface | GPIO x 1, I2C x 1, SPI x 1 (CSx2) |
| Power Supply | |
| Power Requirement | +9~36V (Lockable terminal block) |
| Power Consumption | 5.76W (Full Loading) |
| MTBF (Hours) | 1,279,408 Hours |
| Environmental and Mechanical | |
| Dimension | 3.94" x 2.84"(100mm x 72mm) |
| Weight | 0.18 lbs (0.08 kg) |
| Mount Options | — |
| Operation Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
| Storage Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| Certification | CE/FCC Class A |
