| SYSTEM | |

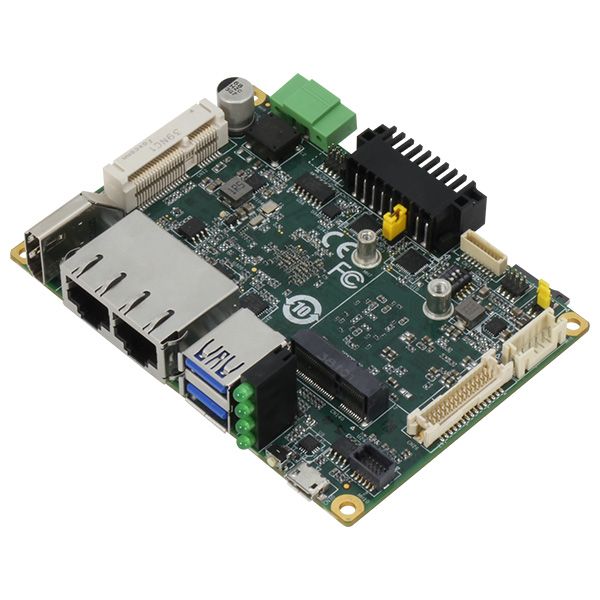

| FORM FACTOR | PICO-ITX, 2.5" SBC |
| PROCESSOR | ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor (Default w/NPU) |
| MEMORY | Onboard LPDDR4 2GB |
| STORAGE | eMMC 5.1 16GB Micro SD Card slot x 1 |
| REAL TIME CLOCK | RTC x 1, with 3V CR2032H Lithium battery |
| SECURITY | — |
| INDICATOR | Programmable LED control x 3 |
| CELLULAR | Full Size Mini Card x 1 (USB signal) |
| WIRELESS LAN | M.2 2230 E-key x 1 (USB, PCIe) |
| OPERATING SYSTEM | Debian 11 (Default, GUI is optional) Android 13 Win 10 IoT Yocto 4.0 |
| SUPPORT PROTOCOL | Modbus, MQTT, OPCUA |
| I/O | |
| SERIAL PORT | RS-232/422/485 switchable x 2, Phoenix Connector |
| ETHERNET | Gigabit Ethernet x 2, RJ-45 support IEEE 1588, TSN, integrated RGMII |
| AUDIO | — |
| USB | USB 3.0 Gen1 x 2 (rear I/O) USB 2.0 x 1 (pin header) |
| CAN BUS | CAN-FD x 2 CH, Phoenix Connector |
| DISPLAY | HDMI 2.0 x 1 LVDS x 1, dual channel, 18/24bit |
| POWER CONNECTOR | 2 Pin 3.81mm Pitch Phoenix Connector |
| DEBUG PORT | Micro USB x 1 |
| EXPANSION SLOT | M.2 2230 E-key x 1, support Wifi/BT module Full Size Mini Card x 1, support 4G module, etc) Power control available by software |
| OTHER INTERFACE | GPIO x 8 (w/o TPM: include SPI x1, I2C x1, GPIO x2) UART x 1 (optional w/o debug port) |
| POWER SUPPLY | |
| POWER REQUIREMENT | +12V (Lockable terminal block) |
| POWER CONSUMPTION | 14.8W (Full Loading) |
| MTBF (HOURS) | 1,699,754 Hours |
| ENVIRONMENTAL AND MECHANICAL | |
| DIMENSION | 3.94" x 2.84"(100mm x 72mm) |
| WEIGHT | 0.18 lbs (0.08 kg) |
| OPERATING TEMPERATURE | -40 °F ~ 176 °F (-40 °C ~ 80 °C) |
| STORAGE TEMPERATURE | -40 °F ~ 176 °F (-40 °C ~ 80 °C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| Certification | CE/FCC Class A |
