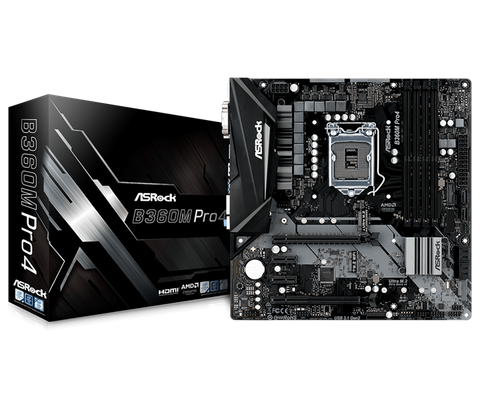

Thông Số Kỹ Thuật Tên gọi ASRock B360M Pro4 CPU hỗ trợ Intel® Socket 1151 for 8th Generation Core™ Processors Chipset / Socket Intel® B360 Bộ nhớ (RAM) - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots Công nghệ đa GPU • AMD Quad CrossFireX™ and CrossFireX™ Khe cắm mở rộng • 2 x PCI Express 3.0 x16 Slots • 4 x PCI Express 3.0 x1 Slots LAN / Wireless • Giga PHY Intel® I219V Âm thanh • Realtek ALC892 Audio Codec Cổng kết nối (Internal) - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) Cổng kết nối (Back Panel) - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Công nghệ độc quyền • ASRock USB 3.1 Gen2 • ASRock Super Alloy • ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) • ASRock Full Spike Protection (for all USB, Audio, LAN Ports) • ASRock Live Update & APP Shop Phụ kiện đi kèm - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hệ điều hành khuyến nghị • Windows® 10 64-bit Chuẩn kích cỡ • mATX Form Factor | |
