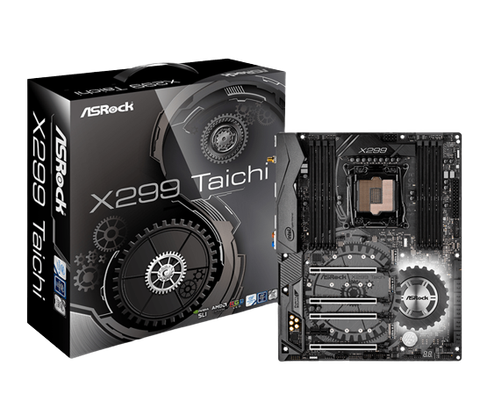

Mainboard Asrock X299 Taichi Socket 2066

Thông Số Kỹ Thuật

Tên gọi
Asrock X299 Taichi
Chipset / Socket
Intel® X299 Express Chipset / Intel Socket 2066
CPU hỗ trợ
Intel® Core™ X series processors in the LGA2066 package
Bộ nhớ (RAM)
Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4
- Supports non-ECC RDIMM (Registered DIMM)
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Khe cắm mở rộng
- 4 x PCI Express 3.0 x16 Slots*
- 1 x PCI Express 2.0 x1 Slot
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
Âm thanh
• Realtek® ALC1220 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
LAN / Wireless
• Intel® GbE LAN chip (10/100/1000 Mbit)
• Intel® 802.11ac WiFi Module (Free Bundle)
• Supports IEEE 802.11a/b/g/n/ac
• Supports Dual-Band (2.4/5 GHz)
• Supports high speed wireless connections up to 433Mbps
• Supports Bluetooth 4.2 / 3.0 + High speed class II
Cổng kết nối
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)*
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Switch
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Chuẩn kích cỡ
• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Đa GPU
• Supports 2-Way AMD® CrossFire™ Technology*
• Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™
