Thông Số Kỹ Thuật
Hãng sản xuất
Asrock
Chủng loại

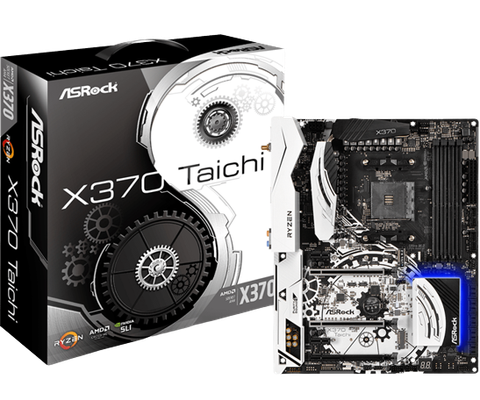

Asrock X370 Taichi
CPU hỗ trợ
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
- IR Digital PWM
- 16 Power Phase design
- Supports 300W EX OC
- Supports ASRock Hyper BCLK Engine II
Chipset
AMD X370
Bộ nhớ trong
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots
VGA onboard
- n/a
Âm thanh
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
Mạng
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Khe mở rộng
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))*
- 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)**
- 2 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Chuẩn lưu trữ
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*
Cổng giao tiếp trước và sau
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Công nghệ tích hợp
Kích thước
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Phụ kiện đi kèm
Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main / | |
