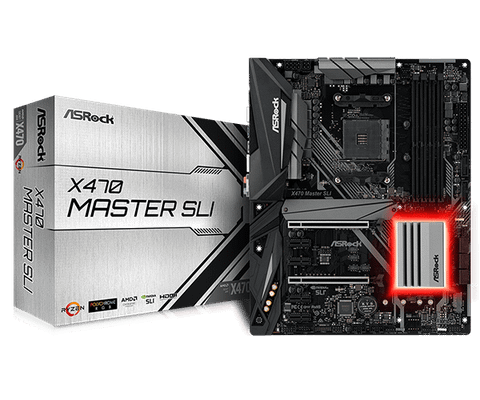

Thông Số Kỹ Thuật Hãng sản xuất Asrock Chủng loại X470 Master SLI CPU hỗ trợ AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Chipset X470 Bộ nhớ trong 4 x DDR4 DIMM Hỗ trợ DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory Tối đa 64GB VGA onboard Âm thanh 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) Khe mở rộng AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x8 (PCIE4)) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1)) - 4 x PCI Express 2.0 x1 Slots - Hỗ trợ AMD Quad CrossFireX™ và CrossFireX™ - Hỗ trợ NVIDIA® Quad SLI™ và SLI™ Chuẩn lưu trữ 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) Cổng giao tiếp - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Công nghệ tích hợp Kích thước ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Phụ kiện đi kèm - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x Screws for M.2 Sockets | |
