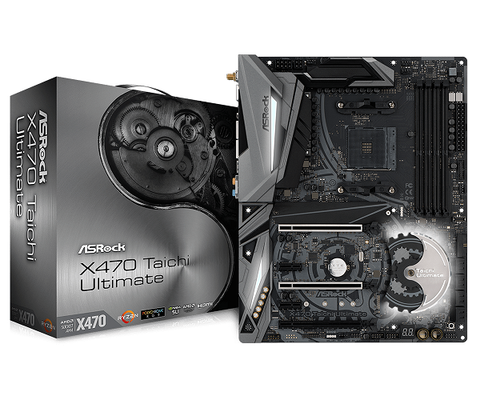

Mainboard Asrock X470 Taichi Ultimate Amd Ryzen Socket Am4

Thông Số Kỹ Thuật
Hãng sản xuất
Asrock
Chủng loại
X470 Taichi
CPU hỗ trợ
AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Chipset
X470
Bộ nhớ trong
Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4
 AMD Ryzen series CPUs (Summit Ridge) support DDR4
- AMD Ryzen series CPUs (Raven Ridge) support DDR4
- Max. capacity of system memory: 64GB
VGA onboard
Âm thanh
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Khe mở rộng
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x8 (PCIE3))
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))
- 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
- 2 x PCI Express 2.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Chuẩn lưu trữ
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)
Cổng giao tiếp
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Công nghệ tích hợp
Kích thước
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Phụ kiện đi kèm
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 2 x ASRock WiFi 2.4/5 GHz Antennas- 2 x Screws for M.2 Sockets
