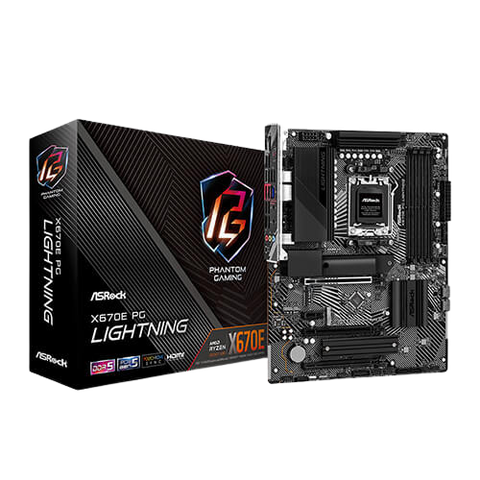

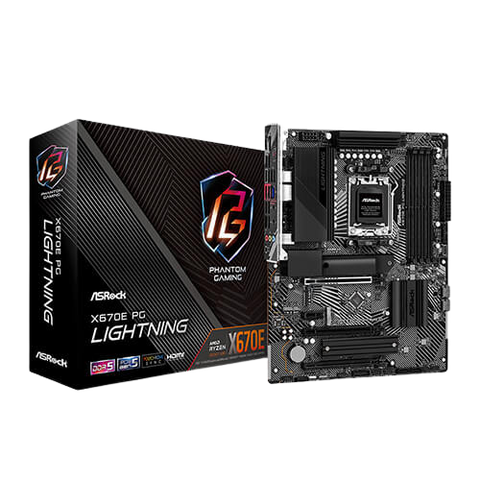

Mainboard Asrock X670e Pg Lightning

Thông Số Kỹ Thuật
Thương Hiệu
ASROCK
Model
X670E PG Lightning
Kích Cỡ
ATX
CPU Socket
AMD5
Chipset
X670
Số Khe Ram
4 x DDR5 DIMM Slots
Bus Ram Hỗ Trợ
4800 - 6600+(OC) MHz
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
Số Kênh Bộ Nhớ Hỗ Trợ
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
PCI Express 3.0 x16
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
PCI Express x1
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode
Số Cổng SATA
4 x SATA3 6.0 Gb/s Connectors
M.2
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
SATA RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Chip Xử Lý Âm Thanh
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Số Kênh Âm Thanh
7.1
LAN Chipset
 2.5 Gigabit LAN
Dragon RTL8125BG
Tốc Độ LAN
10/100/1000/2500 Mb/s
Cổng I/O Phía Sau
 2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Cổng Kết Nối Khác
1 x SPI TPM Header
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
Đèn LED Đi Kèm
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
Kích Thước (W x L)
30.5 cm x 24.4 cm
Chân Cắm Nguồn
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
