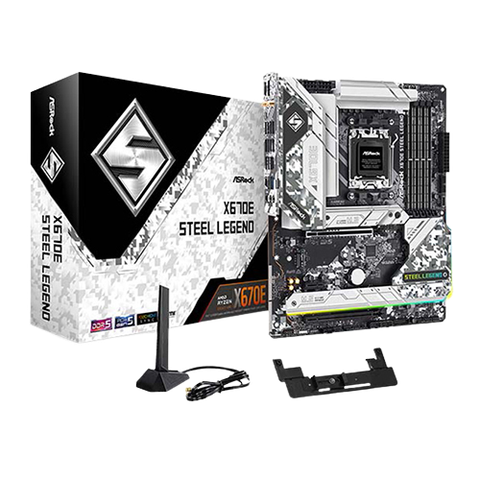

Mainboard Asrock X670e Steel Legend

Thông Số Kỹ Thuật

Kích Cỡ
ATX
CPU Socket
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset
AMD X670
Bus Ram Hỗ Trợ
6600+(OC)
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
Số Kênh Bộ Nhớ Hỗ Trợ
Dual
PCI Express 3.0 x16
1
PCI Express x1
2
Số Cổng SATA
6
M.2
2
SATA RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Chip Xử Lý Âm Thanh
Realtek ALC1220 7.1
Số Kênh Âm Thanh
7.1-Channel
LAN Chipset
Realtek RTL8111
Tốc Độ LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Onboard USB
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 6 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 2 x RJ-45 LAN Ports
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack
Cổng Kết Nối Khác
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Đèn LED Đi Kèm
N/A
Kích Thước (W x L)
30.5 cm x 24.4 cm
Chân Cắm Nguồn
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
