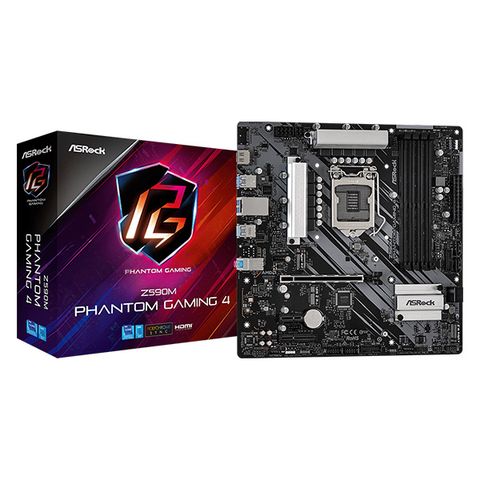

Mainboard Asrock Z590m Phantom Gaming 4

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

Z590M Phantom Gaming 4

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM Slots, tối đa 128GB

- 11th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)

Khe cắm mở rộng

11th Gen Intel^® Core™ Processors
- 1 x PCI Express 4.0 x16 Slot (PCIE1*
10th Gen Intel^® Core™ Processors
- 1 x PCI Express 3.0 x16 Slot (PCIE1)*
- 1 x PCI Express 3.0 x4 Slot
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel^® CNVi (Integrated WiFi/BT)

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 18), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel^® Core™ Processors) **
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel)

- 3 x Antenna Mounting Points
- 1 x HDMI Port
- 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

LAN
-  Gigabit LAN 10/100/1000 Mb/s


Kích cỡ

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
