CPU hỗ trợ | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® B560 |
Bộ nhớ | Memory Channels:2DDR4 (Dual Channel) Max Memory Size:64GB DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
Đồ họa | 1 x D-Sub 1 x HDMI™ 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
Khe mở rộng | Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel®11th Gen processors support PCIe 4.0 x16 mode – Intel®10th Gen processors support PCIe 3.0 x16 mode Intel® B560 Chipset 2 x PCIe 3.0 x1 slots |
Chuẩn lưu trữ | Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * The M.2_2 shares bandwidth with SATA6G_2.When M.2_2 runs SATA mode, SATA6G_2 will be disabled. |
Mạng | 1 x Intel® I219-V 1Gb Ethernet ASUS LANGuard |
Âm Thanh | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Kết nối USB | Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Kết nối ngoài | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Kết nối trong | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
Kích thước | microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
Phụ kiện | Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |

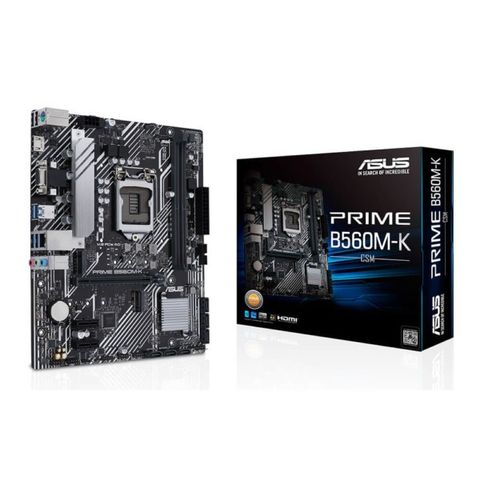

Thay Mainboard Asus Prime B560m-k/csm – Socket 1200 mới chính hãng có bảo hành
Cung cấp và thay linh kiện Mainboard Asus Prime B560m-k/csm – Socket 1200
Bán Mainboard Asus Prime B560m-k/csm – Socket 1200 chính hãng có bảo hành
Chào mừng quý khách đến với trung tâm bảo hành Mainboard Asus Prime B560m-k/csm – Socket 1200
Tư vấn bảo hành Cung cấp 24/7: 028.3844.2008
Kính chào quý khách!
Trung tâm bảo hành Mainboard Asus Prime B560m-k/csm – Socket 1200 trên toàn quốc , phục vụ cả ngày lễ và chủ nhật không nghỉ trua 7h30-20h30
Bạn lăn tăn mua trả góp 0% Mainboard Asus Prime B560m-k/csm – Socket 1200 ở đâu? Làm sao để thuê được giá rẻ? Cùng vienmaytinh tìm hiểu về vấn đề này nhé.
- Bạn có nhu cầu dùng Mainboard Asus Prime B560m-k/csm – Socket 1200 ngay bây giờ
- Bạn đang lăn tăn thay linh kiện giá mắc lại còn bệnh vặt phải nhờ người quen biết để giải quyết nhanh làm sao có ngay dùng liền nếu phù hợp với bạn... Sau đó mới mua
- Bạn muốn trải nghiệm dịch vụ cho thuê Mainboard Asus Prime B560m-k/csm – Socket 1200 học cách làm mới tiết kiệm tg chi phí
- Bạn muốn sử dụng Mainboard Asus Prime B560m-k/csm – Socket 1200 , điện thoại laptop surface trong thời gian ngắn hạn.....
Chính vì vậy:
Vienmaytinh cung cấp dịch vụ bán trả góp 0% , cho thuê Mainboard Asus Prime B560m-k/csm – Socket 1200 - thuê vip với nhiều phương án linh hoạt!
Phương châm: dùng bao nhiêu trả bấy nhiêu - hợp mua - giải quyết công việc trước mắt đã.
Gọi ngay cho Mr minh - 0903 613 753 - 1800 1080 để tìm hiểu và lựa chọn dịch vụ thuê hợp với bạn.
