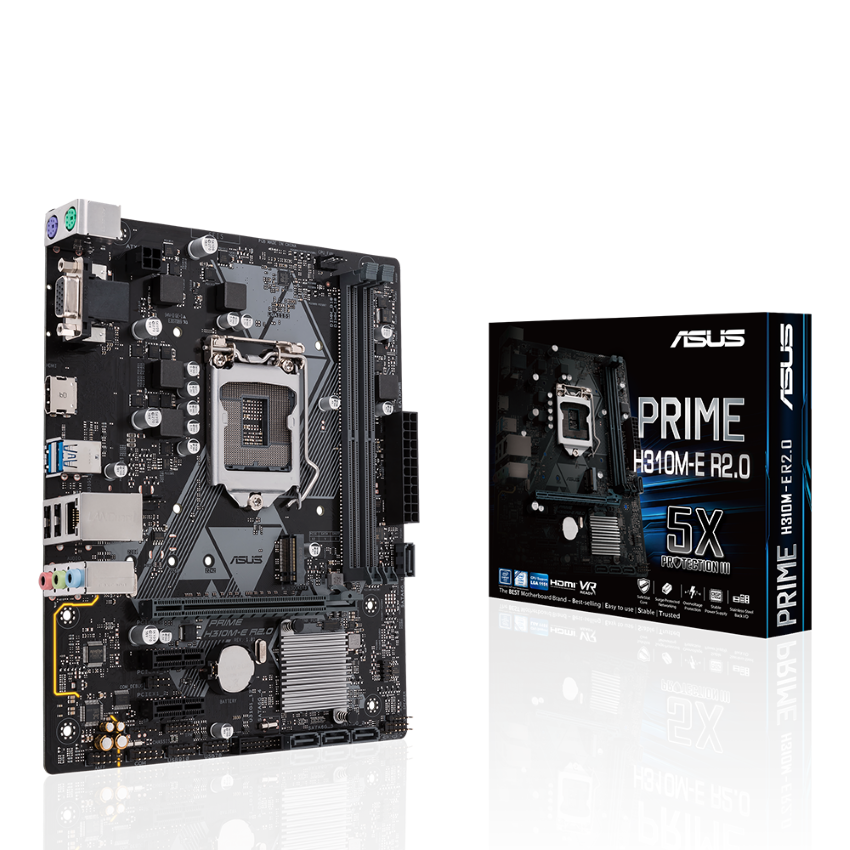

Mainboard Asus Prime H310m-e R2.0 (intel H310, Socket 1151)

Tên gọi

ASUS PRIME H310M-E R2.0

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset / Socket

H310

Bộ nhớ (RAM)

-2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Công nghệ đa GPU

- Không hỗ trợ

Khe cắm mở rộng

- 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- 2 x PCIe 2.0 x1

LAN

- Realtek® RTL8111H

Âm thanh

- Realtek® ALC887

Cổng kết nối (Internal)

- 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 - PCIE mode)
- 1 x TPM header
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x Speaker connector

Cổng kết nối (Back Panel)

- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
- 2 x USB 2.0
- 3 x Audio jack(s)

Công nghệ độc quyền

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4 Phase digital power design
ASUS OptiMem：
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

Phụ kiện đi kèm

- Hướng dẫn sử dụng
- 2 x cáp SATA 6Gb / s
- I/O Shield
- 1 x DVD hỗ trợ

Hệ điều hành khuyến nghị

- Microsoft® Windows® 10 64-bit

Chuẩn kích cỡ

Dạng thiết kế mATX
9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
