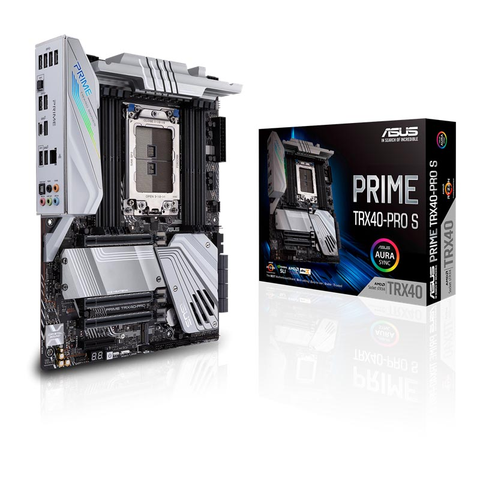

ASUS Prime TRX40-Pro S được thiết kế chuyên nghiệp để giải phóng toàn bộ tiềm năng của bộ vi xử lý số lõi cao mới nhất của AMD cho người sáng tạo nội dung, nhà thiết kế và sử dụng chuyên nghiệp. Kết hợp giữa thiết kế năng lượng mạnh mẽ, giải pháp làm mát toàn diện, kết nối PCIe 4.0 cực nhanh và các tùy chọn điều chỉnh thông minh, bo mạch chủ máy tính để bàn cao cấp mang lại hiệu suất và độ ổn định cần thiết để biến mọi tầm nhìn sáng tạo thành hiện thực.
| Sản phẩm | Mainboard - Bo mạch chủ |
| Tên Hãng | ASUS |
| Model | PRIME TRX40-PRO S |
| CPU hỗ trợ | Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Supports CPU up to 64 cores |
| Chipset | AMD TRX40 |
| RAM hỗ trợ | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| Khe cắm mở rộng | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) * AMD TRX40 chipset 1 x PCIe 4.0 (x4 mode) |
| Lưu trữ | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN / Wireless / Bluetooth | Intel® I211-AT ASUS Turbo LAN Utility ASUS LAN Guard |
| Âm Thanh | Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) Audio Feature : - DTS X®:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB | AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia® USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board) |
| Tính năng đặc biệt | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App ASUS SafeSlot - Protect your graphics card Investment AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
| Cổng kết nối ( I/O Phía sau) | 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s) |
| Cổng kết nối ( I/O bên trong) | 1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Ghi chú | Recommend you to install add-on cards on (PCIEX16_1 and PCIEX16_2) or (PCIEX16_1 and PCIEX16_3) to enjoy 2 way SLI™ or CrossFireX™. |
