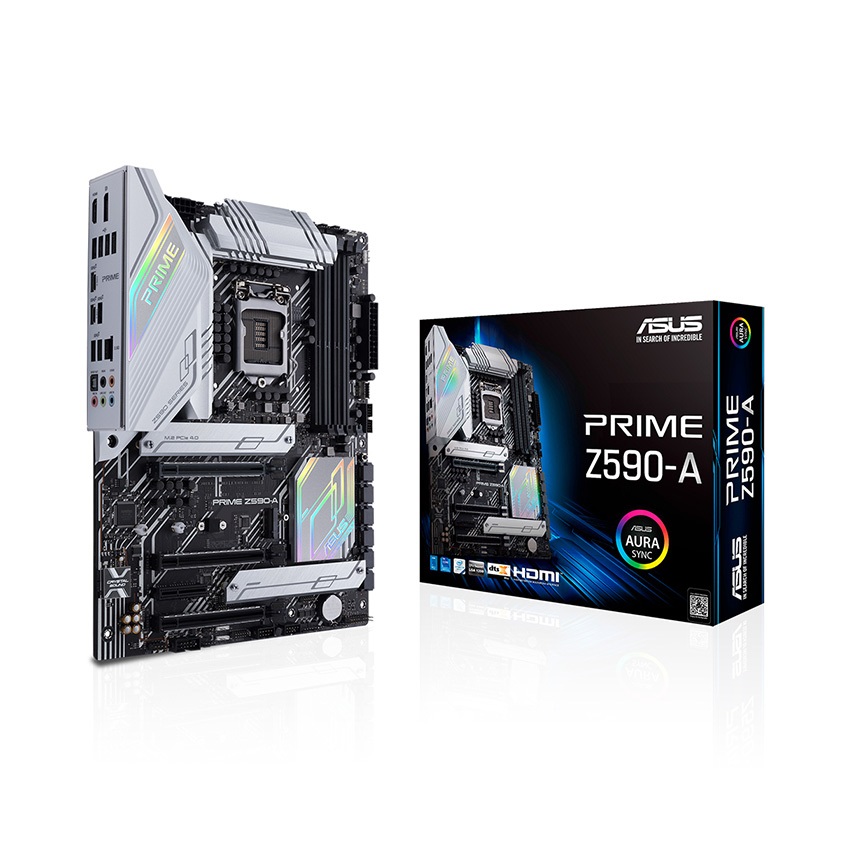

Mainboard Asus Prime Z590-a

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME Z590-A

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 11&10 Intel® Core Socket LGA1200

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM Slots ( tối đa 128GB )
Supports DDR4 5133(OC)/5000(OC)4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

3 x PCI Express 4.0/3.0 x16 Slots
1 x PCI Express 3.0 x 16 Slots

Ổ cứng hỗ trợ

6 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Lan/Wireless

1 x Intel® I225-V 2.5Gb Ethernet

Kích cỡ

ATX Form Factor: 12 inch x 9.6 inch (30.5cm x 24.4cm)
