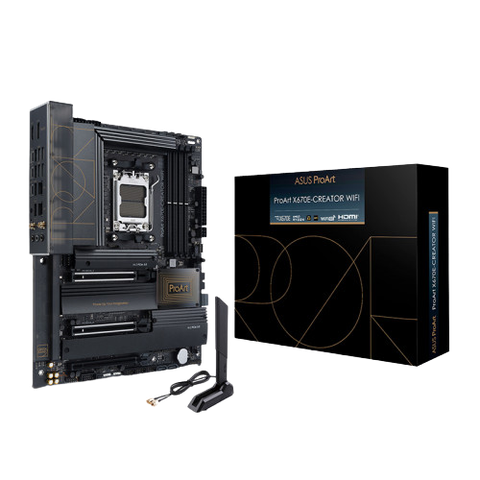

Mainboard Asus Proart X670e-creator Wifi

Thông Số Kỹ Thuật

Kích Cỡ
ATX
CPU Socket
AM5
Chipset
X670
Số Khe Ram
4
Bus Ram Hỗ Trợ
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
PCI Express 3.0 x16
AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
AMD X670 Chipset
1 x PCIe 4.0 x16 slot (supports x2 mode)
Số Cổng SATA
4 x SATA 6Gb/s ports
M.2
Total supports 4 x M.2 slots
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Chip Xử Lý Âm Thanh
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
LAN Chipset
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.2
Cổng I/O Phía Sau
2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
Onboard USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Cổng Kết Nối Khác
Rear USB (Total 11 ports)
2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
3 x Addressable Gen 2 header
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
Kích Thước (W x L)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chân Cắm Nguồn
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
1 x 6-pin PCIe Power connector
