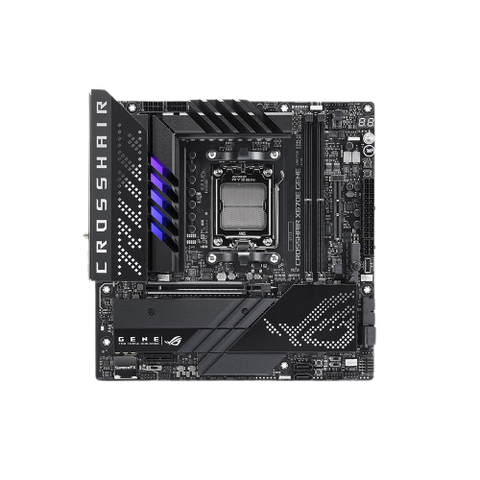

Mainboard Asus Rog Crosshair X670e Gene

Thông Số Kỹ Thuật
Kích Cỡ
M-ATX
CPU Socket
AM5
Chipset
X670
Số Khe Ram
2
Bus Ram Hỗ Trợ
DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC) / 5200 / 5000 / 4800 MHz ECC and Non-ECC, Un-buffered Memory (tối đa 64GB)
Dung Lượng Ram Tối Đa Hỗ Trợ
64GB
PCI Express 3.0 x16
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot
AMD X670 Chipset
1 x PCIe 4.0 x1 slot
Số Cổng SATA
4 x SATA 6Gb/s ports
M.2
Total supports 3 x M.2 slot
6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
GEN-Z.2_1 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 5.0 x4)**
AMD X670 Chipset
GEN-Z.2_2 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 4.0 x4)
Chip Xử Lý Âm Thanh
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
LAN Chipset
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Cổng I/O Phía Sau
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
1 x PS/2 Keyboard/Mouse combo port
Onboard USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Cổng Kết Nối Khác
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
3 x 4-pin Full Speed Fan headers
1 x 80 Light Bar jumper
2 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
2 x BCLK button
1 x FlexKey button
1 x 10-1 pin Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Kích Thước (W x L)
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Chân Cắm Nguồn
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
