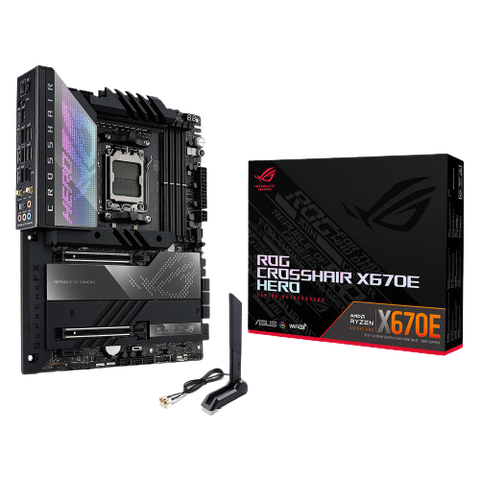

Mainboard Asus Rog Crosshair X670e Hero

Thông Số Kỹ Thuật
Kích Cỡ
ATX
CPU Socket
AM5
Chipset
X670
Số Khe Ram
4
Bus Ram Hỗ Trợ
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz Un-buffered Memory
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
PCI Express 3.0 x16
AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
PCI Express x1
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
Số Cổng SATA
6 x SATA 6Gb/s ports
M.2
Total supports 5 x M.2 slots
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
Chip Xử Lý Âm Thanh
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
LAN Chipset
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
Cổng I/O Phía Sau
2 x USB4® ports with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Cổng Kết Nối Khác
Rear USB (Total 12 ports)
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Kích Thước (W x L)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm
Chân Cắm Nguồn
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
