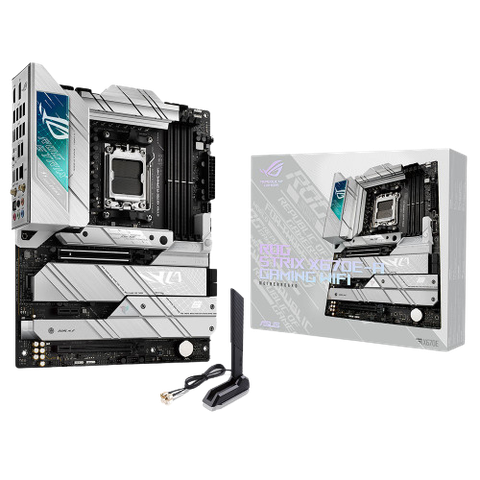

Mainboard Asus Rog Strix X670e-a Gaming Wifi

Thông Số Kỹ Thuật

Kích Cỡ
ATX
CPU Socket
AM5
Chipset
X670
Số Khe Ram
4
Bus Ram Hỗ Trợ
DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
PCI Express 3.0 x16
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
AMD X670 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
PCI Express x1
1 x PCIe 3.0 x1 slot
Số Cổng SATA
4 x SATA 6Gb/s ports
M.2
Total supports 4 x M.2 slots
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Chip Xử Lý Âm Thanh
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
 - Impedance sense for front and rear headphone outputs
 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
 - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
 - Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
LAN Chipset
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
 Supports 2.4/5/6GHz frequency band*
 Bluetooth v5.2
Cổng I/O Phía Sau
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Onboard USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
Cổng Kết Nối Khác
Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™  header
Kích Thước (W x L)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chân Cắm Nguồn
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
