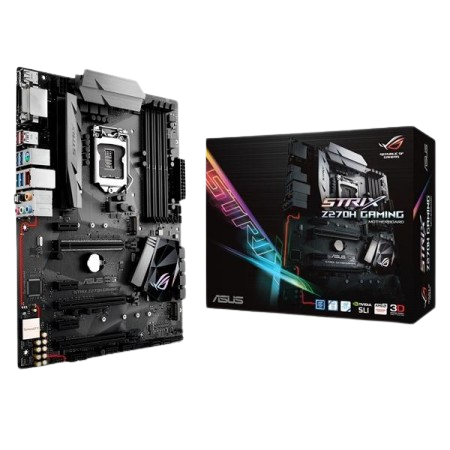

Mainboard Asus Rog Strix Z270h Gaming Intel® Socket 1151

Thông Số Kỹ Thuật
Bộ vi xử lý    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset    Intel® Z270
Khe cắm mở rộng    2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (x2 mode) 3 x PCIe 3.0/2.0 x1
Cổng I/O ở trong    1 x AAFP connector 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x CPU_OV jumper
Cổng I/O phía sau    1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Type-A 2 x USB 2.0 4 x USB 3.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Lan    Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology
Âm thanh    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
Giao tiếp    Intel® Z270 Chipset : 8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board) Intel® Z270 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
Bộ nhớ    4 x DIMM, Max. 64GB, DDR43 MHz Non-ECC, Un-buffered, Register Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Kích thước    ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Hãng sản xuất    Asus
