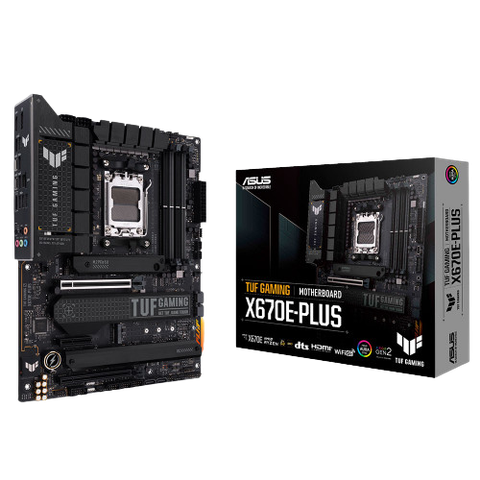

Mainboard Asus Tuf Gaming X670e-plus

Thông Số Kỹ Thuật

Kích Cỡ
ATX
CPU Socket
AM5
Chipset
X670
Số Khe Ram
Bus Ram Hỗ Trợ
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dung Lượng Ram Tối Đa Hỗ Trợ
128GB
PCI Express 3.0 x16
AMD Ryzen™ 7000 Series Desktop Processors*
-1 x PCIe 5.0 x16 slot
AMD X670 Chipset
-1 x PCIe 4.0 x16 slot (supports x4 mode)
-1 x PCIe 4.0 x4 slots
Số Cổng SATA
4 x SATA 6Gb/s ports
M.2
Total supports 4 x M.2 slots
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
M .2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Chip Xử Lý Âm Thanh
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
LAN Chipset
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Cổng I/O Phía Sau
1 x USB 3.2 Gen 2x2 ports (1 x USB Type-C ® )
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C ® )
5 x USB 3.2 Gen 1 ports (5 x Type- A)
1 x DisplayPort
1 x HDMI ® port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Onboard USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C ® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Cổng Kết Nối Khác
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C ® )
5 x USB 3.2 Gen 1 ports (5 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C ® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
Kích Thước (W x L)
12 inch x 9.6 inch (30.5 cm x 24.4 cm )
Chân Cắm Nguồn
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
