CPU | Build in Intel® Socket 1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Build in Intel® Z490 |
Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.) / 4600(O.C) / 4500(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe x1 |
Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
LAN | Intel® I219-V 1Gb Ethernet TUF LANGuard |
Wireless Data Network | Intel® Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
Bluetooth | Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
Audio | Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Optical S/PDIF out port(s) at back panel – Audio cover – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
USB Ports | Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®) 1 x USB 3.2 Gen 1 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(1 x Type-A) |
Software Features | ASUS Exclusive Software Armoury Crate – Aura Sync AI Suite 3: – Performance And Power Saving Utility Turbo V Evo EPU Digi+ VRM Fan Xpert 4 System information – EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 90 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
ASUS Special Features | ASUS TUF PROTECTION – ASUS DIGI+ VRM (- Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Stylish heatsink ASUS EZ DIY – Procool AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 2 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
Accessories | User´s manual 1 x ASUS Fan Holder I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x DIY Sticker for GUNDAM Cobranding Series 1 x Wi-Fi moving antenna |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows® 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note | *1 M.2_1 shares bandwidth with SATA6G_2. When M.2_1 runs SATA mode, SATA6G_2 will be disabled. *2 M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be disabled. |

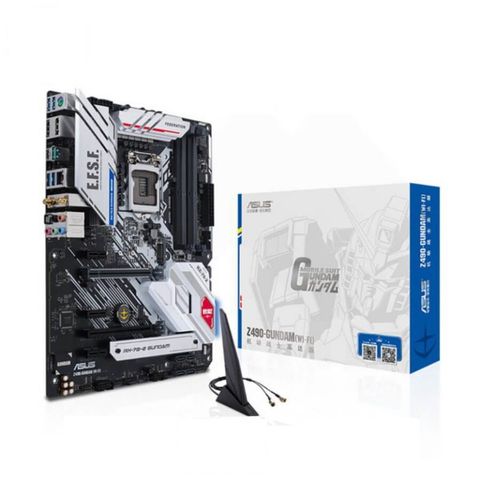

Thay Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 mới chính hãng có bảo hành
Cung cấp và thay linh kiện Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200
Bán Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 chính hãng có bảo hành
Chào mừng quý khách đến với trung tâm bảo hành Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200
Tư vấn bảo hành Cung cấp 24/7: 028.3844.2008
Kính chào quý khách!
Trung tâm bảo hành Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 trên toàn quốc , phục vụ cả ngày lễ và chủ nhật không nghỉ trua 7h30-20h30
Bạn lăn tăn mua trả góp 0% Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 ở đâu? Làm sao để thuê được giá rẻ? Cùng vienmaytinh tìm hiểu về vấn đề này nhé.
- Bạn có nhu cầu dùng Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 ngay bây giờ
- Bạn đang lăn tăn thay linh kiện giá mắc lại còn bệnh vặt phải nhờ người quen biết để giải quyết nhanh làm sao có ngay dùng liền nếu phù hợp với bạn... Sau đó mới mua
- Bạn muốn trải nghiệm dịch vụ cho thuê Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 học cách làm mới tiết kiệm tg chi phí
- Bạn muốn sử dụng Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 , điện thoại laptop surface trong thời gian ngắn hạn.....
Chính vì vậy:
Vienmaytinh cung cấp dịch vụ bán trả góp 0% , cho thuê Mainboard Asus Z490 – Gundam Edition (wi-fi) – Socket 1200 - thuê vip với nhiều phương án linh hoạt!
Phương châm: dùng bao nhiêu trả bấy nhiêu - hợp mua - giải quyết công việc trước mắt đã.
Gọi ngay cho Mr minh - 0903 613 753 - 1800 1080 để tìm hiểu và lựa chọn dịch vụ thuê hợp với bạn.
