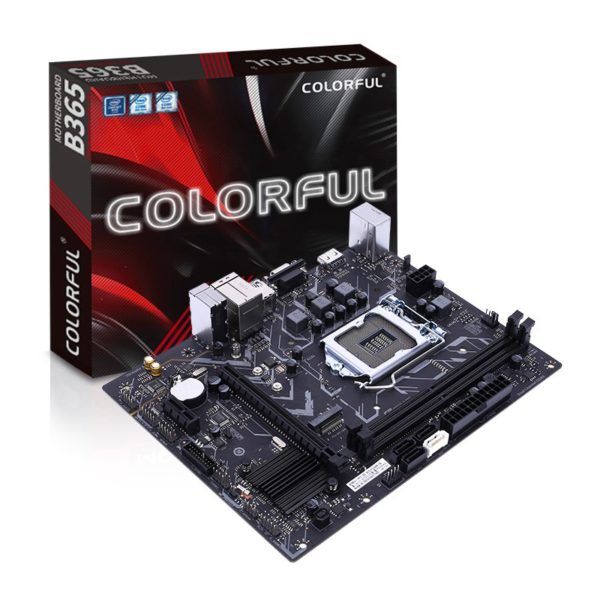

Mainboard Colorful B365m-k Pro V20
| Motherboard series | Intel series |
| chipset | Intel B365 |
| CPU support | Support Intel LGA1151 interface Coffee Lake-S series processors |
| Memory support | 2 DDR4 memory module slots, support DDR4 dual channel 2133 /2400/2666 MHZ specification memory, support XMP memory |
| Graphics card support | 1 PCI Express 3.0×16 slot |
| Storage interface | 4 SATA3.0 6Gb/s hard disk interfaces |
| Extension ports | IO: 1 PS2 mouse and keyboard universal port, 4 USB2.0 ports, 1 HDMI port, 1 VGA port, 2 USB3.0 ports, 1 Gigabit network port, 1 group of 3-hole 6-channel audio Interface (audio input/audio output/microphone); Onboard: 1 USB2.0 interface extension pin, 1 USB3.0 interface extension pin, 1 COM pin |
| Expansion slot | 1 PCI Express 3.0×16 slot, 1 PCI Express3.0 x1 slot, 1 M.2 slot (support PCIe x4 NVME SSD & SATA SSD, Note: When using M.2 SATA, BIOS options need to be set It is M.2 SATA mode. Since M.2 SATA and SATA1 ports share bandwidth, when using M.2 SATA, SATA1 port cannot be used!) |
| System BIOS | 128M UEFI, BIOS language supports English, Chinese simplified |
| Power management | Advanced power management functions support ACPI S3/S4/S5/G3, support scheduled boot, call boot, network S5 wakeup |
| Hardware monitoring | Controllable CPU fan speed, SYSTEM fan speed monitoring, CPU temperature monitoring, System temperature monitoring, and voltage monitoring of each group |
| Onboard network card | RTL8111H Gigabit |
| Onboard sound card | ALC662 6 channels |
| Motherboard specifications | 170mm*221mm mATX |
