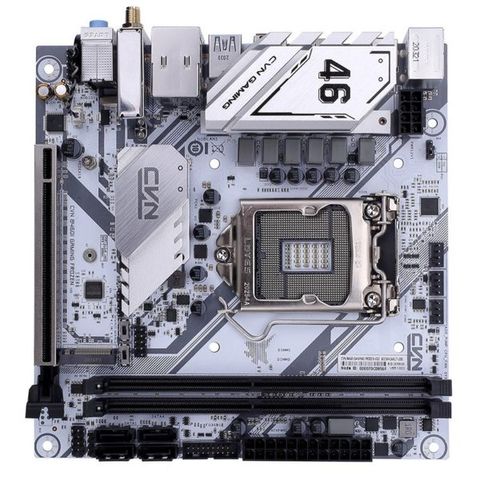

Mainboard Colorful Cvn B460i Gaming Frozen V20
| Motherboard series | Intel series, CVN series |
| chipset | Intel B460 |
| CPU support | Support Intel LGA1200 interface Comet Lake-S series processors (TDP: 65W) |
| Memory support | Provides 2 memory module slots, single memory supports up to 32GB capacity, total memory capacity up to 64G, supports XMP memory, supports dual-channel DDR4-2933/2800/2666/2400/2133MHz memory, warm reminder: memory overclocking frequency It also depends on the overclocking performance of the CPU and memory itself! |
| Graphics card support | 1 PCI Express 3.0×16 slot |
| Storage interface | The motherboard provides 4 SATA3.0 6Gb/s hard disk interfaces, supporting RAID0, 1, 5, 10 |
| extension port | IO: 1 set of PS2 mouse and keyboard ports, 1 DP port, 1 HDMI port, 2 USB2.0 ports, 4 USB3.2 Gen1 ports (3*Type-A+1* Type-C) ports, 1 One gigabit network interface, one WIFI antenna interface, and one 6-hole 8-channel audio interface. Onboard: 1 USB2.0 extension pin, 1 USB3.2 Gen1 Type-A extension pin |
| Expansion slot | 1 PCI Express 3.0×16 slot, 1 WiFi/BT module slot (onboard Intel AX200 Wi-Fi 6 network card), 1 M.2 slot (support SATA & PCIe x4 & Intel OPTANE SSD, support 2242 2280 size SSD, data transfer rate up to 32Gb/s. There are two sets of switches on the motherboard (the silkscreen is M.2_SW1 and M.2_SW2) for switching between PCI-e x4 & Intel OPTANE and SATA SSD.) |
| System BIOS | 128M UEFI, support multiple languages |
| Power management | Support ACPI S3/S4/S5/G3, support PS2 mouse/keyboard wake-up, support USB wake-up, network S5 wake-up, support scheduled boot, call boot |
| Hardware monitoring | CPU fan/system fan speed controllable, CPU temperature monitoring, motherboard temperature monitoring, and each group voltage monitoring |
| Onboard network card | RTL8111H Gigabit LAN |
| Onboard sound card | ALC662 sound card chip |
| Motherboard specifications | 170mm*170mm ITX |
| Other functions | All USB ports support the power-off function. Note: The JPS2 jumper sets the power-off function of the rear USB2.0 interface, and the BIOS option sets the power-off function of the front USB interface and the rear USB3.2 Gen1 interface |
