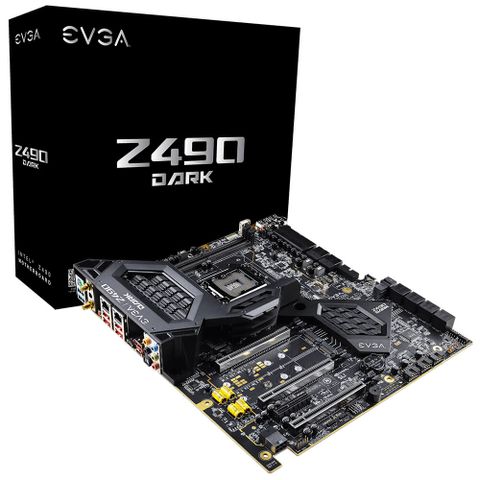

The EVGA Z490 DARK sets the standard for motherboards based on the Intel® Z490 chipset. Designed for ultra-enthusiasts looking to pull every last ounce of performance from the new 10th Gen Intel® 10-Core CPUs, the Z490 DARK features an 18-Phase VRM design, along with two right-angle 8pin High Current connectors to provide maximum power for overclocking. Two SMT DIMMs enable high-frequency and low latency RAM overclocking. The 10-layer PCB is studded with multiple sensors to track a variety of temperatures and voltages across the board, which can be displayed on the dual-LED displays. The Z490 DARK also contains one Intel® 2.5 GbE NIC, one Intel® Gigabit NIC, a mini-Display Port, PCIe disable switches, triple BIOS support, 8 smart fan headers, and many more premium features. Lastly, a motherboard is only as good as its BIOS, and the EVGA Z490 DARK features EVGA’s newest UEFI/BIOS GUI with a focus on overclocking and functionality in a lean, straightforward package.
Supported CPUs | 10th Generation Intel® Core i9/i7/i5 Processors |
Socket Type | Intel® SocketLGA1200 |
PCH | Intel® Z490 |
DIMM QTY | 2 DIMM Dual-Channel |
Memory Type | DDR4 4800MHz+ |
Memory Capacity | 64GB |
SATA6.0Gb/sPorts/Controller | 6/Intel® Z490PCH |
RAID Support | RAID 0, 1, 5, and 10 |
SATA 6.0Gb/s Ports/Controller | 2 /ASMedia ASM1061 |
USB 2.0 Ports/Controller | 7 Ports (6 from internal headers / 1 from Update Port for flashingBIOS)/Intel® Z490USBHub |
USB 3.2 Gen1 Ports/Controller | 4 (2 from internal header)/Intel® Z490PCH |
USB 3.2 Gen2 Ports/Controller | 5x USB3.2 Gen2 Type-A/1x USB3.2 Gen2 Type-C (external)/ 1x USB3.2 Gen2 Type-C (internal header) |
Network Speed | 10/100/1000/2500 + 10/100/1000 |
Network Ports/Controller | Intel i225V PHY + Intel® i219V PHY |
WiFi/BT | Intel® AX201 WiFi 6 /BT 5.1 module, preinstalled in the M.2 Key-E 32mm Slot |
Audio | 7.1 Channel Realtek + EVGA NU Audio |
Audio Controller | Realtek ALC1220 + SV3H615 |
Display Output | mini-DisplayPort |
PCIe Slot Arrangement | 3×16, 1×4 |
PCIe x16 Mechanical Slots | 3 |
PCIe x16 Mechanical Arrangement | 1×16/8, 1×8/4, 1×4 |
PCIe x4 Mechanical Slots | 1 |
U.2 | 1x U.2 Port |
M.2 Key-M | 2x 110mm (Up to 32Gbps) |
M.2 Key-E | 1x 32mm (Vertical) |
Fan Headers | 8x 4-Pin (2x CPU PWM, 6x PWM/DC) |
BIOS Type | Latest UEFI BIOS with mouse/ keyboard control, OC Robot, In-BIOS Stress Test |
Software | EVGA ELEET X1 Tuning Utility |
Width | 10.9in – 277mm |
Length | 12in – 305mm |
Form Factor | E-ATX Form Factor |
ACCESSORIES | EVGA Quick Installation Guide Rear Case I/O Panel 2 SATA 6G Data Cables 2x M.2 Thermal Pad 2x Antenna for WiFi Benchstand + Screws/Standoffs 2x ProbeIt Connectors Flexible SLI® Bridge Case Badge USB Flash Drive Contains Driver and Manual |
Thay Mainboard Evga Z490 Dark – Socket 1200 mới chính hãng có bảo hành
Cung cấp và thay linh kiện Mainboard Evga Z490 Dark – Socket 1200
Bán Mainboard Evga Z490 Dark – Socket 1200 chính hãng có bảo hành
Chào mừng quý khách đến với trung tâm bảo hành Mainboard Evga Z490 Dark – Socket 1200
Tư vấn bảo hành Cung cấp 24/7: 028.3844.2008
Kính chào quý khách!
Trung tâm bảo hành Mainboard Evga Z490 Dark – Socket 1200 trên toàn quốc , phục vụ cả ngày lễ và chủ nhật không nghỉ trua 7h30-20h30
Bạn lăn tăn mua trả góp 0% Mainboard Evga Z490 Dark – Socket 1200 ở đâu? Làm sao để thuê được giá rẻ? Cùng vienmaytinh tìm hiểu về vấn đề này nhé.
- Bạn có nhu cầu dùng Mainboard Evga Z490 Dark – Socket 1200 ngay bây giờ
- Bạn đang lăn tăn thay linh kiện giá mắc lại còn bệnh vặt phải nhờ người quen biết để giải quyết nhanh làm sao có ngay dùng liền nếu phù hợp với bạn... Sau đó mới mua
- Bạn muốn trải nghiệm dịch vụ cho thuê Mainboard Evga Z490 Dark – Socket 1200 học cách làm mới tiết kiệm tg chi phí
- Bạn muốn sử dụng Mainboard Evga Z490 Dark – Socket 1200 , điện thoại laptop surface trong thời gian ngắn hạn.....
Chính vì vậy:
Vienmaytinh cung cấp dịch vụ bán trả góp 0% , cho thuê Mainboard Evga Z490 Dark – Socket 1200 - thuê vip với nhiều phương án linh hoạt!
Phương châm: dùng bao nhiêu trả bấy nhiêu - hợp mua - giải quyết công việc trước mắt đã.
Gọi ngay cho Mr minh - 0903 613 753 - 1800 1080 để tìm hiểu và lựa chọn dịch vụ thuê hợp với bạn.
