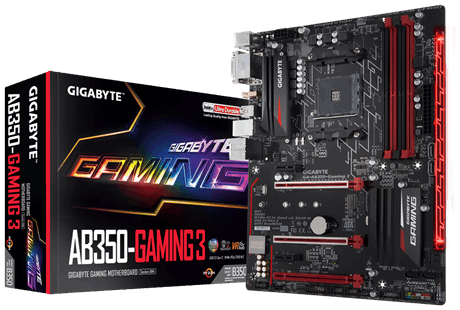

Mainboard Gigabyte Ab350-gaming 3 Socket Am4

Thông Số Kỹ Thuật
CPU
   AM4 Socket:
1.     AMD Ryzen™ processor
2.     AMD 7th Generation A-series/ Athlon™ processor
Chipset
      AMD B350
Bộ nhớ
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Card đồ họa tích hợp
Integrated Graphics Processor:
1.     1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
2.     1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Maximum shared memory of 2 GB
Âm thanh
1.     Realtek® ALC1220 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
  1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  1 x PCI Express x16 slot, running at x4 (PCIEX4)
  1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
1.     · 2 x PCI Express x1 slots
Giao diện lưu trữ
Support for RAID 0, RAID 1, and RAID 10
Kết nối bảng phía sau
1.     1 x PS/2 keyboard/mouse port
2.     1 x DVI-D port
3.     1 x HDMI port
4.     4 x USB 3.1 Gen 1 ports
5.     2 x USB 3.1 Gen 2 Type-A ports (red)
6.     1 x USB 2.0/1.1 port
7.     1 x RJ-45 port
8.     1 x optical S/PDIF Out connector
9.     5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Hệ điều hành
1.     Support for Windows 10 64-bit
2.     Support for Windows 7 64-bit
Hệ số khuôn
ATX Form Factor; 30.5cm x 23.0cm
