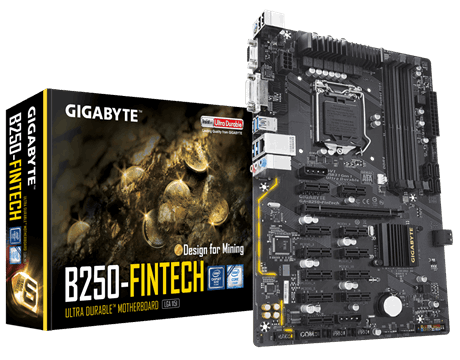

Mainboard Gigabyte B250 Fintec Socket Lga1151

Thông Số Kỹ Thuật
 CPU
1.     Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® B250 Express Chipset
·         Memory
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4 2400/2133 MHz memory modules
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor- Intel® HD Graphics support:
1.     1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2.     1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
·         Audio
1.     Realtek® ALC887 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
·         LAN
1.     Realtek® GbE LAN chip (10/100/1000 Mbit)
·         Expansion Slots
1.     1 x PCI Express x16 slot, running at x16
2.     11 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.     6 x SATA 6Gb/s connectors
·         USB
Chipset:
1.     6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2.     6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     2 x PCIe power connectors
4.     1 x CPU fan header
5.     3 x system fan headers
6.     6 x SATA 6Gb/s connectors
7.     1 x front panel header
8.     1 x front panel audio header
9.     1 x S/PDIF Out header
10.                                                1 x USB 3.1 Gen 1 header
11.                                                2 x USB 2.0/1.1 headers
12.                                                1 x serial port header
13.                                                1 x Clear CMOS jumper
·         Back Panel Connectors
1.     1 x PS/2 keyboard/mouse port
2.     1 x D-Sub port
3.     1 x DVI-D port
4.     4 x USB 3.1 Gen 1 ports
5.     2 x USB 2.0/1.1 ports
6.     1 x RJ-45 port
7.     3 x audio jacks
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.    Fan speed detection
4.     Overheating warning
5.     Fan fail warning
6.     Fan speed control
·         BIOS
1.     1 x 64 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
·         Bundle Softwar
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Operating System
1.     Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.     Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Form Factor
1.     ATX Form Factor; 30.5cm x 20.0cm
