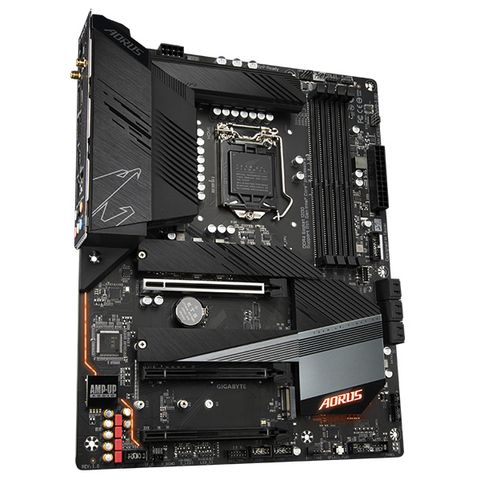

| Model | B560 AORUS PRO AX |
CPU hỗ trợ | 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
|
Chipset | Intel® B560 Express Chipset |
RAM hỗ trợ | 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
Cổng xuất hình onboard | Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.3 |
Âm Thanh | 1. Realtek® ALC4080 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out |
LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless | Intel® Wi-Fi 6 AX200
1. Wi-Fi 802.11a / b / g / n / ac / ax, hỗ trợ Băng tần kép 2,4 / 5 GHz
2. BLUETOOTH 5.1
3. Hỗ trợ tiêu chuẩn không dây 11ax 160MHz và tốc độ dữ liệu lên đến 2,4 Gbps
* Tốc độ dữ liệu thực tế có thể thay đổi tùy thuộc vào môi trường và thiết bị. |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
Đa Card màn hình | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
Ổ cứng hỗ trợ | CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)(M2A_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2B_SB)
3. 6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel® Optane™ Memory Ready |
USB | Chipset:
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
|
Cổng kết nối (I/O bên trong) | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 3 x M.2 Socket 3 connectors
9. 6 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 1 x S/PDIF Out header
16. 2 x Thunderbolt™ add-in card connectors
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button |
Cổng kết nối (I/O Phía sau) | 1. 1 x PS/2 keyboard/mouse port
2. 1 x DisplayPort
3. 1 x HDMI port
4. 2 x SMA antenna connectors (2T2R)
5. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 4 x USB 3.2 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks |
| Bộ điều khiển I / O | iTE® I/O Controller Chip |
| H/W Monitoring | 1. Phát hiện điện áp
2. Phát hiện nhiệt độ
3. Phát hiện tốc độ quạt
4. Phát hiện tốc độ dòng chảy làm mát nước
5. Cảnh báo lỗi quạt
6. Kiểm soát tốc độ quạt
* Chức năng điều khiển tốc độ quạt có được hỗ trợ hay không sẽ phụ thuộc vào loại quạt bạn lắp đặt. |
BIOS | 1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Các tính năng độc đáo | 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install |
| Phần mềm đóng gói | 1. Norton® Internet Security (OEM version)
2. cFosSpeed |
| Hệ điều hành | Windows 10 64-bit |
Kích cỡ | ATX Form Factor; 30.5cm x 24.4cm |
