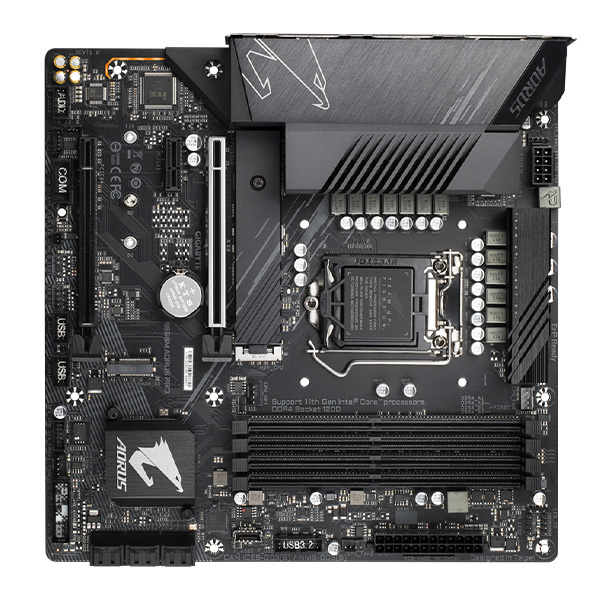

Mainboard Gigabyte B560m-aorus Pro
THÔNG SỐ KỸ THUẬT
Model | B560M AORUS PRO |
CPU hỗ trợ | 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
|
Chipset | Intel® B560 Express Chipset |
RAM hỗ trợ | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Cổng xuất hình onboard | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.3 |
Âm Thanh | Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel |
LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
Đa Card màn hình | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
|
USB | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
Cổng kết nối (I/O bên trong) | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Cổng kết nối (I/O Phía sau) | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A port (red) 2 x USB 3.2 Gen1 ports 6 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Các tính năng độc đáo | Support for APP Center * Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Kích cỡ | ATX Form Factor; 24.4cm x 24.4cm |
