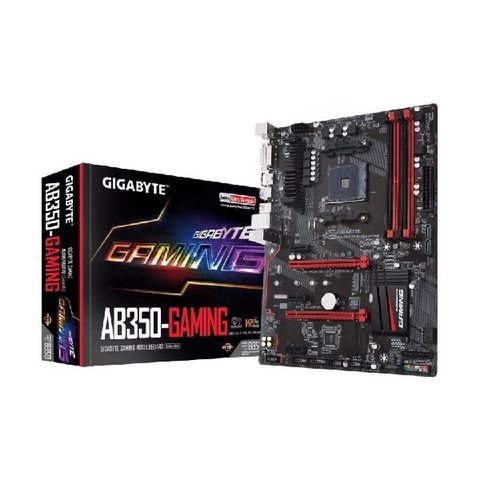

Mainboard Gigabyte GA-AB350-Gaming 3

Chuyên cung cấp Mainboard Gigabyte GA-AB350-Gaming 3 nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

Thông Tin Chi Tiết :

• CPU
  AM4 Socket:

  1. AMD Ryzen™ processor
  2. AMD 7^th Generation A-series/ Athlon™ processor

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. AMD B350
• Bộ nhớ
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
     * Support for higher than DDR4 2667 MHz may vary by CPU.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
     * Support for HDMI 1.4 version.

  Maximum shared memory of 2 GB

  * Actual support may vary by CPU.
• Âm thanh
  1. Realtek^® ALC1220 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     * Actual support may vary by CPU.
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
     * Actual support may vary by CPU.
  3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
  4. 2 x PCI Express x1 slots
     (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Giao diện lưu trữ
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
     * Actual support may vary by CPU.
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Công nghệ đa card đồ họa
  1. Support for 2-Way AMD CrossFire™ Technology
• USB
  Chipset:

  1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
  3. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

  CPU:

  1. 4 x USB 3.1 Gen 1 ports on the back panel
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 6 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x water cooling CPU fan header
  7. 2 x system fan headers
  8. 1 x system fan/water cooling pump header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x USB 3.1 Gen 1 header
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x CPU cooler LED strip/RGB LED strip extension cable header
  16. 1 x RGB (RGBW) LED strip extension cable header
  17. 1 x Clear CMOS jumper
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 4 x USB 3.1 Gen 1 ports
  5. 2 x USB 3.1 Gen 2 Type-A ports (red)
  6. 1 x USB 2.0/1.1 port
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     3D OSD
     AutoGreen
     BIOS Setup
     Cloud Station
     Color Temperature
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     System Information Viewer
     USB Blocker
     USB DAC UP 2
     V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Hệ điều hành
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
     * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Hệ số khuôn
  1. ATX Form Factor; 30.5cm x 23.0cm
