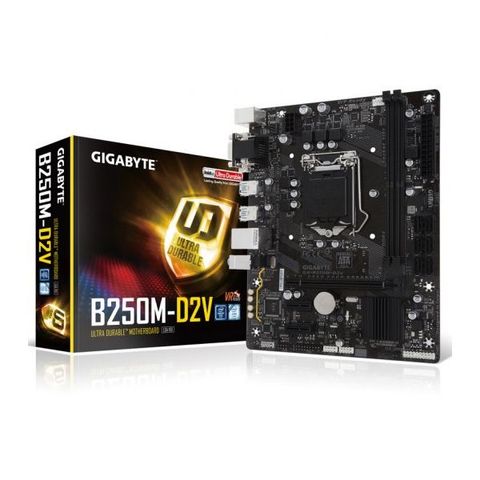

Mainboard Gigabyte GA-B250M-D2V Socket 1151

Chuyên cung cấp Mainboard Gigabyte GA-B250M-D2V Socket 1151 nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

Thông Tin Chi Tiết :

• CPU
  1. Support for 7^th and 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® B250 Express Chipset
• Bộ nhớ
  1. x DDR4 DIMM sockets supporting up to 32 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400* / 2133 MHz memory modules
     * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.

  Maximum shared memory of 1 GB
• Âm thanh
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
  2. 2 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Giao diện lưu trữ
  Chipset:

  1. 6 x SATA 6Gb/s connectors
• USB
  Chipset:

  1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 6 x SATA 6Gb/s connectors
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.1 Gen 1 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     Ambient LED
     AutoGreen
     BIOS Setup
     Color Temperature
     Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     System Information Viewer
     USB Blocker
     V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Hệ điều hành
  1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)

  2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^®Processors)
     * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Hệ số khuôn
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
