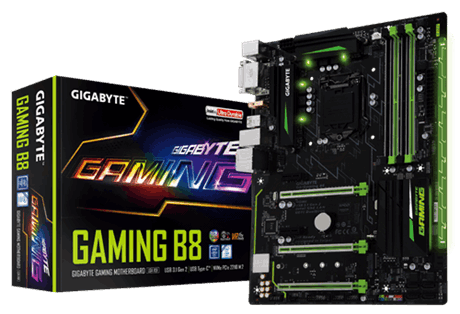

Mainboard Gigabyte Ga-gaming B8 Socket Lga1151

Thông Số Kỹ Thuật
     CPU
1.     Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® B250 Express Chipset
·         Memory
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4 2400* / 2133 MHz memory modules
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1.     1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
2.     1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Maximum shared memory of 1 GB
·         Audio
1.     Realtek® ALC1220 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     Intel® GbE LAN chip (10/100/1000 Mbit)
·         Expansion Slots
1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.     2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
3.     2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.     6 x SATA 6Gb/s connectors
·         Multi-Graphics Technology
1.     Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
·         USB
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:
1.     1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2.     1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
3.     6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4.     5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x M.2 Socket 3 connector
4.     6 x SATA 6Gb/s connectors
5.     1 x CPU fan header
6.     1 x water cooling CPU fan header
7.     2 x system fan headers
8.     1 x system fan/water cooling pump header
9.     1 x front panel header
10.                                                1 x front panel audio header
11.                                                1 x USB 3.1 Gen 1 header
12.                                                2 x USB 2.0/1.1 headers
13.                                                1 x S/PDIF Out header
14.                                                1 x Trusted Platform Module (TPM) header
15.                                                1 x RGB(RGBW) LED strip extension cable header
16.                                                1 x Thunderbolt™ add-in card connector
17.                                                1 x Clear CMOS jumper
·         Back Panel Connectors
1.     1 x PS/2 keyboard/mouse port
2.     1 x DVI-D port
3.     1 x HDMI port
4.     1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5.     1 x USB 3.1 Gen 2 Type-A port (red)
6.     4 x USB 3.1 Gen 1 ports
7.     1 x USB 2.0/1.1 port
8.     1 x RJ-45 port
9.     1 x optical S/PDIF Out connector
10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Overheating warning
5.     Fan fail warning
6.     Fan speed control
·         BIOS
1.     2 x 64 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.     Support for 3TB+ Unlock
3.     Support for Q-Flash
4.     Support for Xpress Install
·         Bundle Software
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Operating System
1.     Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.     Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Form Factor
1.     ATX Form Factor; 30.5cm x 23.0cm
·         Box Contents
1.     GA-Gaming B8 motherboard
2.     Four SATA cables
3.     Motherboard driver disk
4.     I/O Shield
5.     User's Manual
