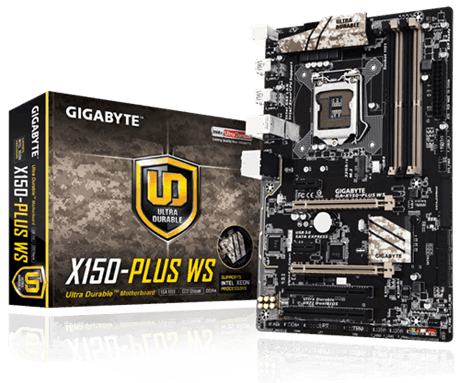

Mainboard Gigabyte Ga-x150-plus Ws Socket Lga1151

Thông Số Kỹ Thuật
   CPU
1.     Support for Intel® Xeon® E3-1200 v5/E3-1200 v6 processors/Intel® Core™ processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
2.     L3 cache varies with CPU
·         Chipset
1.     Intel® C232 Chipset
·         Bộ nhớ
1.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.     Dual channel memory architecture
3.     Support for DDR4 2400/2133 MHz memory modules
4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
·         Âm thanh
1.     Realtek® ALC892 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     Intel® GbE LAN chip (10/100/1000 Mbit)
·         Khe cắm mở rộng
1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.     1 x PCI Express x16 slot, running at x4 (PCIEX4)
3.     2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
4.     2 x PCI slots
·         Giao diện lưu trữ
Chipset:
1.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2/x1 SSD support)
2.     1 x SATA Express connector
3.     6 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, RAID 5, and RAID 10
·         Công nghệ đa card đồ họa
1.     Support for 2-Way AMD CrossFire™ technology
·         USB
Chipset:
1.     6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2.     6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
·         Kết nối I/O bên trong
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x M.2 Socket 3 connector
4.     1 x SATA Express connector
5.     6 x SATA 6Gb/s connectors
6.     1 x CPU fan header
7.     3 x system fan headers
8.     1 x front panel header
9.     1 x front panel audio header
10.                                                1 x S/PDIF Out header
11.                                                1 x USB 3.0/2.0 header
12.                                                2 x USB 2.0/1.1 headers
13.                                                1 x Trusted Platform Module (TPM) header
14.                                                1 x Thunderbolt™ add-in card connector
15. 1 x serial port header
16.  1 x parallel port header
17.  1 x Clear CMOS jumper
·         Kết nối bảng phía sau
1.     1 x PS/2 keyboard port
2.     1 x PS/2 mouse port
3.     2 x USB 2.0/1.1 ports
4.     4 x USB 3.0/2.0 ports
5.     1 x RJ-45 port
6.     6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
·         Điều khiển I/O
1.     iTE® I/O Controller Chip
·         Theo dõi phần cứng
1.     System voltage detection
2.     CPU/System temperature detection
3.     CPU/System fan speed detection
4.     CPU/System overheating warning
5.     CPU/System fan fail warning
6.     CPU/System fan speed control
·         BIOS
1.     2 x 64 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Tính năng duy nhất
1.     Support for APP Center
@BIOS
2.     Support for Q-Flash
3.     Support for Smart Switch
4.     Support for Xpress Install
·         Gói phần mềm
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Hệ điều hành
1.     Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.     Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Hệ số khuôn
1.     ATX Form Factor; 30.5cm x 20.0cm
