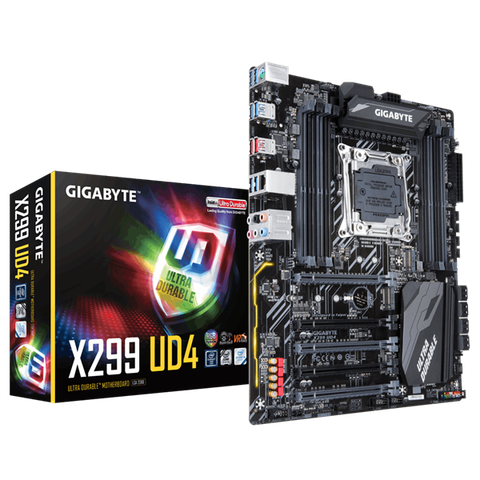

Mainboard Gigabyte Ga-x299-ud4 (rev. 1.0) Socket La2066

Thông Số Kỹ Thuật

 ·         CPU
1.     Support for Intel® Core™ X series processors in the LGA2066 package
2.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® X299 Express Chipset
·         Memory
1.     8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
2.     4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
3.     4 channel memory architecture.
4.     Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
5.     Support for DDR4
6.     Support for non-ECC Un-buffered DIMM memory modules
7.     Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
8.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Audio
1.     Realtek® ALC1220 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     Intel® GbE LAN chip (10/100/1000 Mbit)
·         Expansion Slots
1.     2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.     1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.     2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
2.     1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3.     8 x SATA 6Gb/s connectors
4.     Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
Intel® VROC ready
·         Multi-Graphics Technology
1.     Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
2.     Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
·         USB
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1.     2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
2.     10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
3.     4 x USB 2.0/1.1 ports available through the internal USB headers
·         Internal I/O Connectors
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connecto
3.     1 x CPU fan header
4.     1 x water cooling CPU fan header
5.     2 x system fan headers
6.     1 x 3 Amp fan/water cooling pump header
7.     1 x digital LED strip header
8.     1 x digital LED strip power select jumper
9.     2 x RGB (RGBW) LED strip extension cable headers
10.                                                2 x M.2 Socket 3 connectors
11.                                                8 x SATA 6Gb/s connectors
12.                                                1 x Intel® VROC Upgrade Key header
13.                                                1 x front panel header
14.                                                1 x front panel audio header
15.                                                1 x S/PDIF Out header
16.                                                2 x USB 3.1 Gen 1 headers
17.                                                2 x USB 2.0/1.1 headers
18.                                                1 x Thunderbolt™ add-in card connector
19.                                                1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20.                                                1 x temperature sensor header
21.                                                1 x Clear CMOS jumper
·         Back Panel Connectors
1.     1 x PS/2 keyboard/mouse port
2.     2 x USB 3.1 Gen 2 Type-A ports (red)
3.     6 x USB 3.1 Gen 1 ports
4.     1 x RJ-45 port
5.     6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.     iTE® I/O Controller Chip
·         H/W Monitoring
1.     Voltage detection
2.     Temperature detection
3.     Fan speed detection
4.     Water cooling flow rate detection
5.     Overheating warning
6.     Fan fail warning
7.     Fan speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.     Support for APP Center
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2.     Support for Q-Flash
3.     Support for Xpress Install
·         Bundle Software
1.     Norton® Internet Security (OEM version)
2.     cFosSpeed
·         Operating System
1.     Support for Windows 10 64-bit
·         Form Factor
1.     ATX Form Factor; 30.5cm x 24.4cm
