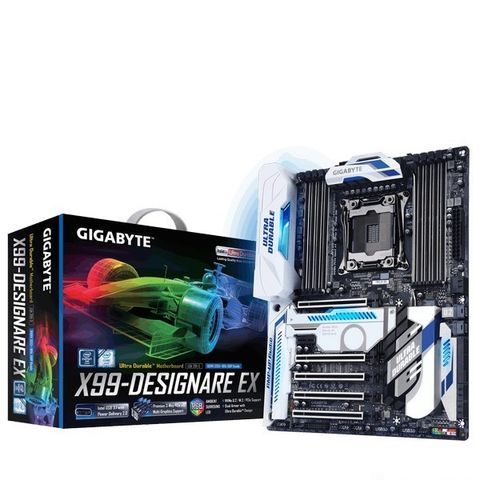

Mainboard Gigabyte GA-X99-Designare EX Socket 2011

Thông Tin Chi Tiết :

• CPU
  1. Support for Intel^® Core™ i7 processors in the LGA2011-3 package
  2. Support for Intel^® Xeon^® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
  3. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® X99 Express Chipset
• Memory
  1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
     * Support for up to 512 GB of system memory when using Registered DIMMs.
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. 4 channel memory architecture
  3. Support for DDR4 3600(OC) / 3400(OC) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Audio
  1. Realtek^® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
  2. Support for Teaming
• Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  3. Support for 11ac wireless standard and up to 867 Mbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 3 x PCI Express x16 slots, running at x16 (PCIEX16_1~3)
     * The PCIEX8 slot shares bandwidth with the PCIEX16_1 slot. When the PCIEX8 slot is populated, the PCIEX16_1 slot operates at up to x8 mode.
     * The U2_32G_2 connector shares bandwidth with the PCIEX16_2 slot. When the U2_32G_2 connector is populated, the PCIEX16_2 slot operates at up to x8 mode.
     * The M2_32G connector shares bandwidth with the PCIEX16_3 slot. When the M2_32G connector is populated, the PCIEX16_3 slot operates at up to x8 mode.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The SATA_EXPRESS connector shares bandwidth with the PCIEX4 slot. When the SATA_EXPRESS connector is populated, the PCIEX4 slot operates at up to x2 mode.
  4. 1 x PCI Express x1 slot
     (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
  5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
• Storage Interface
  Chipset:

  1. 1 x SATA Express connector
  2. 6 x SATA 6Gb/s connectors (SATA3 0~5), supporting RAID 0, RAID 1, RAID 5, and RAID 10
  3. 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
     (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.)
  4. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
  5. 2 x U.2 connectors
     * When an i7-5820K or i7-6800K CPU is installed, the U2_32G_1 connector becomes unavailable.
• Multi-Graphics Technology
  1. Support for NVIDIA^® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA^® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
• USB
  Chipset+Intel^® Thunderbolt™ 3 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
  ŠŠ

  Chipset+Renesas^® USB 3.0 Hubs:

  1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  Chipset:

  1. 1 x USB 3.0/2.0 ports on the back panel
  2. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 2 x U.2 connectors
  5. 1 x SATA Express connector
  6. 10 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling fan/water cooling pump header (CPU_OPT_PUMP)
  9. 2 x system fan headers
  10. 1 x system fan/water cooling pump header (SYS_FAN3_PUMP)
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 2 x USB 3.0/2.0 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Thunderbolt™ add-in card connector
  17. 1 x Trusted Platform Module (TPM) header
  18. 1 x RGB LED strip extension cable header
  19. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x USB Type-C™ port, with USB 3.1 support
  5. 1 x USB 3.1 Type-A port (red)
  6. 5 x USB 3.0/2.0 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan (pump) speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan (pump) fail warning
  6. CPU/CPU OPT/System fan (pump) speed control
     * Whether the fan speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. Support for Q-Flash Plus
     * The USB flash drive used must be a USB 2.0 flash drive.
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     Ambient LED
     AutoGreen
     BIOS Setup
     Color Temperature
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     ON/OFF Charge
     Platform Power Management
     Smart TimeLock
     Smart Keyboard
     Smart Backup
     System Information Viewer
     USB Blocker
     V-Tuner
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
• Bundle Software
  1. Norton^® Internet Security (OEM version)
  2. Intel^® Smart Response Technology
  3. cFosSpeed
• Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
