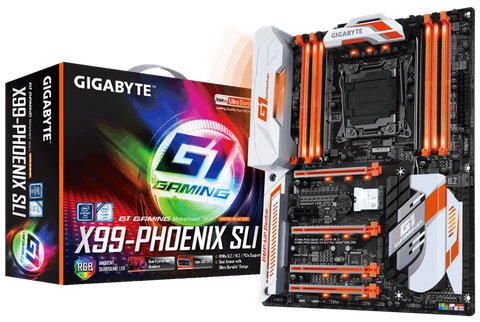

Mainboard Gigabyte Ga-x99-phoenix Sli (rev. 1.0)

Thông Số Kỹ Thuật

·         CPU
1.     Support for Intel® Core™ i7 processors in the LGA2011-3 package
2.     Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
3.     L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.     Intel® X99 Express Chipset·
 Bộ nhớ
1.     8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2.     4 channel memory architecture
3.     Support for DDR4
4.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5.     Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
6.     Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Âm thanh
1.     Realtek® ALC1150 codec
2.     High Definition Audio
3.     2/4/5.1/7.1-channel
4.     Support for S/PDIF Out
·         LAN
1.     2 x Intel® GbE LAN chips (10/100/1000 Mbit)
2.     Support for Teaming
·         Wireless Communication module
1.     Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2.     Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
3.     Support for 11ac wireless standard and up to 867 Mbps data rate
·         Khe cắm mở rộng
1.     2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.     2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
3.     1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
4.     1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
·         Giao diện lưu trữ
Chipset:
1.     1 x SATA Express connector
2.     6 x SATA 6Gb/s connectors (SATA3 0~5), supporting RAID 0, RAID 1, RAID 5, and RAID 10
3.     4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
(An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.)
4.     1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
5.     1 x U.2 connector
·         Công nghệ đa card đồ họa
1.     Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
2.     Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
·         USB
Chipset+Intel® USB 3.1 controller:
1.     1 x USB Type-C™ port on the back panel, with USB 3.1 support
2.     1 x USB 3.1 Type-A port (red) on the back panel
Chipset:
3.     2 x USB 3.0/2.0 ports on the back panel
4.     4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+2 Renesas® USB 3.0 Hubs:
5.     8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
·         Kết nối I/O bên trong
1.     1 x 24-pin ATX main power connector
2.     1 x 8-pin ATX 12V power connector
3.     1 x PCIe power connector
4.     1 x CPU fan header
5.     1 x water cooling fan/water cooling pump header (CPU_OPT_PUMP)
6.     2 x system fan headers
7.     1 x system fan/water cooling pump header (SYS_FAN3_PUMP)
8.     1 x RGB LED strip extension cable header
9.     1 x SATA Express connector
10.                                                10 x SATA 6Gb/s connectors
11.                                                1 x M.2 Socket 3 connector
12.                                                1 x U.2 connector
13.                                                1 x front panel header
14.                                                1 x front panel audio header
15.                                                1 x S/PDIF Out header
16.                                                2 x USB 3.0/2.0 headers
17.                                                2 x USB 2.0/1.1 headers
18.                                                1 x Trusted Platform Module (TPM) header
19.                                                1 x Thunderbolt™ add-in card connector
20.                                                1 x Clear CMOS jumper
·         Kết nối bảng phía sau
1.     1 x PS/2 keyboard/mouse port
2.     2 x SMA antenna connectors (2T2R)
3.     1 x USB Type-C™ port, with USB 3.1 support
4.     1 x USB 3.1 Type-A port (red)
5.     6 x USB 3.0/2.0 ports
6.     2 x RJ-45 ports
7.     1 x optical S/PDIF Out connector
8.     5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
·         Điều khiển I/O
1.     iTE® I/O Controller Chip
·         Theo dõi phần cứng
1.     System voltage detection
2.     CPU/System/Chipset temperature detection
3.     CPU/CPU OPT/System fan (pump) speed detection
4.     CPU/System/Chipset overheating warning
5.     CPU/CPU OPT/System fan (pump) fail warning
6.     CPU/CPU OPT/System fan (pump) speed control
·         BIOS
1.     2 x 128 Mbit flash
2.     Use of licensed AMI UEFI BIOS
3.     Support for DualBIOS™
4.     Support for Q-Flash Plus
5.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Tính năng duy nhất
1.     Support for APP Center
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
ON/OFF Charge
Platform Power Management
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
V-Tuner
2.     Support for Q-Flash
3.     Support for Smart Switch
4.     Support for Xpress Install
·         Gói phần mềm
1.     Norton® Internet Security (OEM version)
2.     Intel® Smart Response Technology
3.     cFosSpeed
·         Hệ điều hành
1.     Support for Windows 10/8.1 64-bit
2.     Support for Windows 7 64-bit/32-bit
·         Hệ số khuô
1.     ATX Form Factor; 30.5cm x 24.4cm
