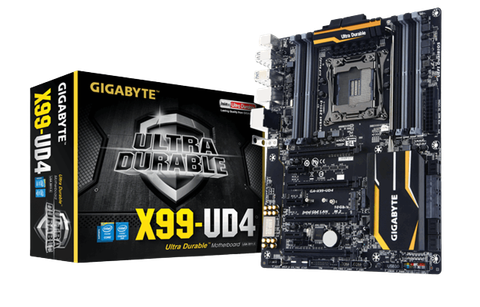

Mainboard Gigabyte Ga-x99-ud4 Socket 1151

Thông Số Kỹ Thuật
 CPU
1.      Support for Intel® Core™ i7 processors in the LGA2011-3 package
2.      Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
3.      L3 cache varies with CPU
·         Chipset
1.      Intel® X99 Express Chipset
·         Memory
1.      8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2.     4 channel memory architecture
3.      Support for DDR4
4.      Support for non-ECC memory modules
5.      Support for Extreme Memory Profile (XMP) memory modules
6.      Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)
·         Audio
1.      Realtek® ALC1150 codec
2.      High Definition Audio
3.      2/4/5.1/7.1-channel
4.      Support for S/PDIF Out
·         LAN
1.      Intel® GbE LAN chips (10/100/1000 Mbit)
·         Expansion Slots
1.      2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
2.      2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
3.      3 x PCI Express x1 slots
4.      1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
·         Storage Interface
Chipset:
1.      1 x M.2 PCIe connector
(Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support)
2.      1 x SATA Express connector
3.      6 x SATA 6Gb/s connectors (SATA3 0~5)
4.      Support for RAID 0, RAID 1, RAID 5, and RAID 10
Chipset:
5.      4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
(An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.
·         Multi-Graphics Technology
1.      Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
2.      Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
·         USB
Chipset:
1.      4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2.      8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
3.      4 x USB 3.0/2.0 ports on the back panel
·         Internal I/O Connectors
1.      1 x 24-pin ATX main power connector
2.      1 x 8-pin ATX 12V power connector
3.      1 x PCIe power connector
4.      1 x I/O shield audio LED power connector
5.      1 x heatsink LED power connector
6.      1 x M.2 Socket 3 connector
7.      1 x SATA Express connector
8.      10 x SATA 6Gb/s connectors
9.      1 x CPU fan header
10.  1 x water cooling fan header (CPU_OPT)
11.  3 x system fan headers
12.  1 x front panel header
13.  1 x front panel audio header
14.  1 x USB 3.0/2.0 header
15.  2 x USB 2.0/1.1 header
16.  1 x Trusted Platform Module (TPM) header
17.  1 x Thunderbolt add-in card connector
18.  1 x Clear CMOS jumper
·         Back Panel Connectors
1.      1 x PS/2 keyboard port
2.      1 x PS/2 mouse port
3.      6 x USB 3.0/2.0 ports
4.      4 x USB 2.0/1.1 ports
5.      1 x RJ-45 port
6.      1 x optical S/PDIF Out connector
7.      5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
8.      2 x Wi-Fi antenna connector holes
·         I/O Controller
1.      iTE® I/O Controller Chip
·         H/W Monitoring
1.      System voltage detection
2.      CPU/System/Chipset temperature detection
3.      CPU/CPU OPT/System fan speed detection
4.      CPU/System/Chipset overheating warning
5.      CPU/CPU OPT/System fan fail warning
6.      CPU/CPU OPT/System fan speed control
·         BIOS
1.      2 x 128 Mbit flash
2.      Use of licensed AMI UEFI BIOS
3.      Support for DualBIOS™
4.      Support for Q-Flash Plus
5.      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.      Support for APP Center
@BIOS
Ambient LED
EasyTune
EZ Setup
Fast Boot
Cloud Station
ON/OFF Charge
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker
V-Tuner
2.      Support for Q-Flash
3.      Support for Smart Switch
4.      Support for Xpress Install
·         Bundle Software
1.      Norton® Internet Security (OEM version)
2.      Intel® Smart Response Technology
3.      cFosSpeed
·         Operating System
1.      Support for Windows 10/8.1/8/7
·         Form Factor
1.      ATX Form Factor; 30.5cm x 24.4cm
