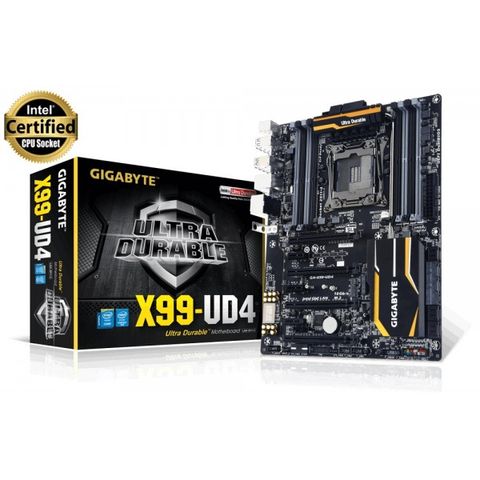

Chuyên cung cấp Mainboard Gigabyte GA-X99-UD4 Socket 2011 nhanh lấy liền tại chỗ trước mặt không để lại máy
Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%
Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ
Thông Tin Chi Tiết :
CPU
- Support for Intel® Core™ i7 processors in the LGA2011-3 package
- Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)Chipset
- Intel® X99 Express Chipset
Bộ nhớ
- 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
* Support for up to 512 GB of system memory when using Registered DIMMs.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. - 4 channel memory architecture
- Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)
(Please refer "Memory Support List" for more information.)Âm thanh
- Realtek® ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- Intel® GbE LAN chips (10/100/1000 Mbit)
Khe cắm mở rộng
- 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.
- 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
* The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
* When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
(All PCI Express x16 slots conform to PCI Express 3.0 standard.)
- 3 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Giao diện lưu trữ
Chipset:- 1 x M.2 PCIe connector
(Socket 3, M key, type 2260/2280 SATA & PCIe x2/x1 SSD support) - 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
(M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)
Chipset:- 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
(An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
Công nghệ đa card đồ họa
- Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
* The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."USB
Chipset:- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:- 4 x USB 3.0/2.0 ports on the back panel
Kết nối I/O bên trong
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 1 x I/O shield audio LED power connector
- 1 x heatsink LED power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 10 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Thunderbolt add-in card connector
- 1 x Clear CMOS jumper
Kết nối bảng phía sau
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 6 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
- 2 x Wi-Fi antenna connector holes
Điều khiển I/O
Theo dõi phần cứng
- System voltage detection
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- Support for Q-Flash Plus
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
EZ Setup
Fast Boot
Cloud Station
ON/OFF Charge
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker
V-Tuner - Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
Gói phần mềm
- Norton® Internet Security (OEM version)
- Intel® Smart Response Technology
- cFosSpeed
Hệ điều hành
- Support for Windows 10/8.1/8/7
Hệ số khuôn
- ATX Form Factor; 30.5cm x 24.4cm
