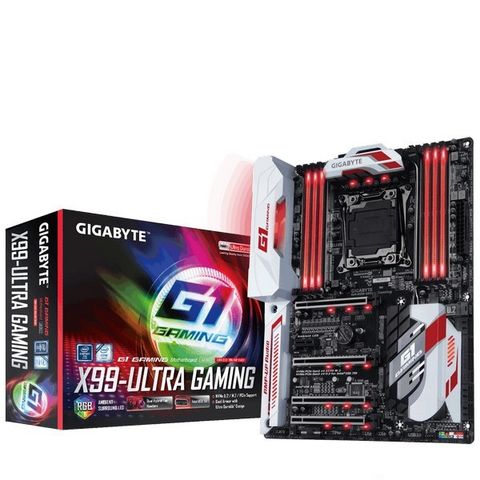

Chuyên cung cấp Mainboard Gigabyte GA-X99-Ultra Gaming Socket 2011 nhanh lấy liền tại chỗ trước mặt không để lại máy
Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%
Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ
Thông Tin Chi Tiết :
CPU
Support for Intel® Core™ i7 processors in the LGA2011-3 package
Support for Intel® Xeon® E5-1600 / E5-2600 / E5-4600 v3 / v4 processors in the LGA2011-3 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® X99 Express Chipset
Memory
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory * Support for up to 512 GB of system memory when using Registered DIMMs. * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek® ALC1150 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
1 x Killer™ E2400 LAN chip (10/100/1000 Mbit) (LAN2) * Teaming is not supported.
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots. * When an 28 lane CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 slot will be disabled.
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot shares bandwidth with the PCIEX16_2 slot. When the PCIEX8_1/PCIEX8_2 slot is populated, the PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode. * When an i7-5820K or i7-6800K CPU is installed, the PCIEX8_2 slot becomes unavailable. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface
Chipset:
1 x SATA Express connector
6 x SATA 6Gb/s connectors (SATA3 0~5), supporting RAID 0, RAID 1, RAID 5, and RAID 10
4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
1 x U.2 connector * When an i7-5820K or i7-6800K CPU is installed, the U.2 connector becomes unavailable.
Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
USB
Chipset+Intel® USB 3.1 controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 support
1 x USB 3.1 Type-A port (red) on the back panel
Chipset+2 Renesas® USB 3.0 Hubs:
8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset:
2 x USB 3.0/2.0 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PCIe power connector
1 x CPU fan header
1 x water cooling fan/water cooling pump header (CPU_OPT_PUMP)
2 x system fan headers
1 x system fan/water cooling pump header (SYS_FAN3_PUMP)
1 x RGB LED strip extension cable header
1 x SATA Express connector
10 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x U.2 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x Wi-Fi antenna connector holes
1 x USB Type-C™ port, with USB 3.1 support
1 x USB 3.1 Type-A port (red)
6 x USB 3.0/2.0 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan (pump) speed detection
CPU/System/Chipset overheating warning
CPU/CPU OPT/System fan (pump) fail warning
CPU/CPU OPT/System fan (pump) speed control * Whether the fan speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
Support for Q-Flash Plus * The USB flash drive used must be a USB 2.0 flash drive.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot ON/OFF Charge Platform Power Management Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker V-Tuner
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
Intel® Smart Response Technology
cFosSpeed
Operating System
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
