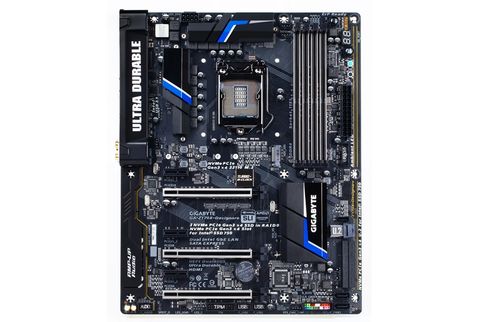

Mainboard Gigabyte Ga-z170x-designare Socket Lga1151

Thông Số Kỹ Thuật
  CPU
1.    Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
2.    L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.    Intel® Z170 Express Chipset
·         Memory
1.    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.    Dual channel memory architecture
3.    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
4.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.    Support for non-ECC Un-buffered 1Rx8/2Rx8/1Rx16 memory modules
6.    Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
1.    2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
Integrated Graphics Processor-Intel® HD Graphics support:
2.    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
3.    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
ŠŠMaximum shared memory of 1024 MB
·         Audio
1.    Realtek® ALC1150 codec
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
4.    Support for S/PDIF Out
·         LAN
1.    2 x Intel® GbE LAN chips (10/100/1000 Mbit)
2.    Support for Teaming
·         Expansion Slots
1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.    1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.    1 x PCI Express x16 slot, running at x4 (PCIEX4)
4.    3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.    1 x U.2 connector
3.    2 x SATA Express connectors
4.    6 x SATA 6Gb/s connectors
5.    Support for RAID 0, RAID 1, RAID 5, and RAID 10
·         Multi-Graphics Technology
1.    Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2.    Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
·         USB
Chipset+Intel® Thunderbolt™ 3 Controller:
1.    2 x USB Type-C™ ports on the back panel, with USB 3.1 support
Chipset:
2.    6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
3.    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
·         Internal I/O Connectors
1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    2 x SATA Express connector
4.    6 x SATA 6Gb/s connectors
5.    1 x M.2 Socket 3 connector
6.    1 x U.2 connector
7.    1 x CPU fan header
8.    1 x water cooling fan/pump header (CPU_OPT_PUMP)
9.    2 x system fan headers
10.                                               1 x system fan/water cooling pump header (SYS_FAN2_PUMP)
11.                                               1 x front panel header
12.                                               1 x front panel audio header
13.                                               1 x S/PDIF Out header
14.                                               1 x USB 3.0/2.0 header
15.                                               2 x USB 2.0/1.1 headers
16.                                               1 x RGB LED strip extension cable header
17.                                               1 x Clear CMOS jumper
18.                                               1 x Trusted Platform Module (TPM) header
19.                                               1 x Thunderbolt™ add-in card connector
20.                                               1 x power button
21.                                               1 x reset button
22.                                               1 x Clear CMOS button
23.                                               1 x OC button
·         Back Panel Connectors
1.    1 x PS/2 keyboard/mouse port
2.    1 x Mini-DisplayPort In
3.    2 x Thunderbolt™3 connectors
4.    4 x USB 3.0/2.0 ports
5.    2 x USB 2.0/1.1 ports
6.    1 x HDMI port
7.    1 x DisplayPort
8.    2 x RJ-45 ports
9.    5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.    iTE® I/O Controller Chip
·         H/W Monitoring
1.    System voltage detectio
2.    CPU/System/Chipset temperature detection
3.    CPU/CPU OPT/System fan (pump) speed detection
4.    CPU/System/Chipset overheating warning
5.    CPU/CPU OPT/System fan (pump) fail warning
6.    CPU/CPU OPT/System fan (pump) speed control
·         BIOS
1.    2 x 128 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    Support for DualBIOS™
4.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.    Support for APP Center
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
ON/OFF Charge
Platform Power Management
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
V-Tuner
2.    Support for Q-Flash
3.    Support for Smart Switch
4.    Support for Xpress Install
·         Bundle Software
1.    Norton® Internet Security (OEM version)
2.    Intel® Smart Response Technology
3.    cFosSpeed
·         Operating System
1.    Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Form Factor
1.    ATX Form Factor; 30.5cm x 24.4cm
