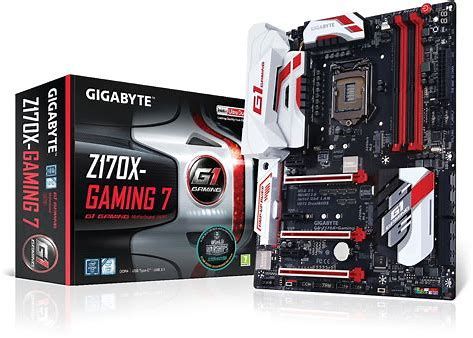

Mainboard Gigabyte Ga-z170x-gaming 7 Socket Lga1151

Thông Số Kỹ Thuật
        CPU
1.    Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
2.    L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.    Intel® Z170 Express Chipse
·         Memory
1.    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.    Dual channel memory architecture
3.    Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4.    Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.    Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6.    Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1.    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
ŠŠ Integrated Graphics Processor+MegaChips MCDP2800 chip:
2.    1 x HDMI 2.0 port
Requires the latest Intel® Graphic Driver from GIGABYTE website.
Maximum shared memory of 1024 MB
·         Audio
1.    Creative® Sound Core 3D chip
2.    Support for Sound Blaster Recon3Di
3.    TI Burr Brown® OPA2134 operational amplifier
4.    High Definition Audio
5.    2/5.1-channel
6.    Support for S/PDIF Out
·         LAN
1.    1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
2.    1 x Killer E2400 chip (10/100/1000 Mbit) (LAN2)
·         Expansion Slots
1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.    1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.    1 x PCI Express x16 slot, running at x4 (PCIEX4)
4.    3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.    2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2.    3 x SATA Express connectors
3.    6 x SATA 6Gb/s connectors (SATA3 0~5)
4.    Support for RAID 0, RAID 1, RAID 5, and RAID 10
ASMedia® ASM1061 chip:
5.    2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only
·         Multi-Graphics Technology
1.    Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2.    Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
·         USB
Chipset:
1.    5 x USB 3.0/2.0 ports on the back panel
2.    4 x USB 2.0/1.1 ports (available through the internal USB headers)
Chipset+Renesas® USB 3.0 Hub:
3.    4 x USB 3.0/2.0 ports (available through the internal USB headers)
Chipset+Intel® Thunderbolt™ 3 Controller:
4.    1 x USB Type-C™ port on the back panel, with USB 3.1 support
5.    1 x USB 3.1 Type-A port (red) on the back panel
·         Internal I/O Connectors
1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    2 x M.2 Socket 3 connectors
4.    3 x SATA Express connectors
5.    8 x SATA 6Gb/s connectors
6.    1 x I/O shield audio LED power connector
7.    1 x CPU fan header
8.    1 x water cooling fan header (CPU_OPT)
9.    3 x system fan headers
10.                                               1 x front panel header
11.                                               1 x front panel audio header
12.                                               2 x USB 3.0/2.0 headers
13.                                               2 x USB 2.0/1.1 headers
14.                                               1 x Trusted Platform Module (TPM) header
15.                                               1 x serial port header
16.                                               1 x Clear CMOS jumper
17.                                               1 x power button
18.                                               1 x reset button
19.                                               1 x Clear CMOS button
20.                                               1 x ECO button
21.                                               1 x OC button
22.                                               1 x audio gain control switch
23.                                               Voltage Measurement Points
24.                                               1 x BIOS switch
·         Back Panel Connectors
1.    1 x PS/2 keyboard/mouse port
2.    1 x DisplayPort
3.    1 x HDMI port
4.    1 x USB Type-C™ port, with USB 3.1 support
5.    1 x USB 3.1 Type-A port (red)
6.    5 x USB 3.0/2.0 ports
7.    2 x RJ-45 ports
8.    1 x optical S/PDIF Out connector
9.    5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
·         I/O Controller
1.    iTE® I/O Controller Chip
·         H/W Monitoring
1.    System voltage detection
2.    CPU/System/Chipset temperature detection
3.    CPU/CPU OPT/System fan speed detection
4.    CPU/System/Chipset overheating warning
5.    CPU/CPU OPT/System fan fail warning
6.    CPU/CPU OPT/System fan speed control
·         BIOS
1.    2 x 128 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    Support for DualBIOS™
4.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.    Support for APP Center
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
2.    Support for Q-Flash
3.    Support for Smart Switch
4.    Support for Xpress Install
·         Bundle Software
1.    Norton® Internet Security (OEM version)
2.    Intel® Smart Response Technology
·         Operating System
1.    Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Form Factor
1.    ATX Form Factor; 30.5cm x 24.4cm
·         Box Contents
1.    GA-Z170X-Gaming 7 motherboard
2.    Motherboard driver disk
3.    User's Manual
4.    Quick Installation Guide
5.    Four SATA cables
6.    I/O Shield
7.    One 2-Way SLI bridge connector
8.    One G Connector
9.    One pack of back I/O dust covers
