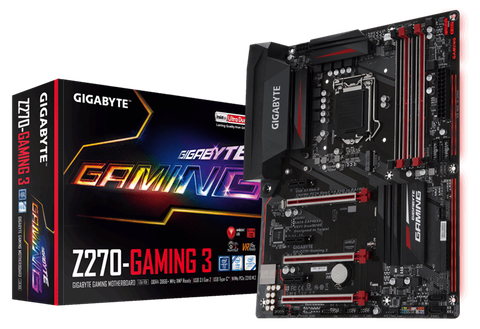

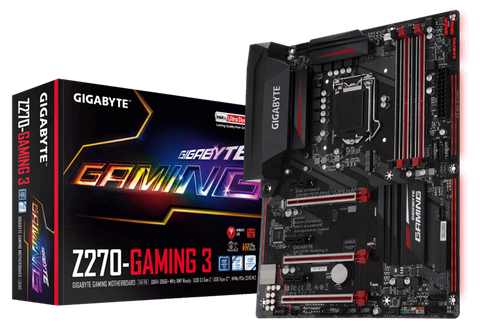

Mainboard Gigabyte Ga-z270x-gaming 3 Socket Lga1151

Thông Số Kỹ Thuật
 ·         CPU
1.    Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2.    L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
·         Chipset
1.    Intel® Z270 Express Chipset
·         Memory
1.    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2.    Dual channel memory architecture
3.    Support for DDR4
4.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.    Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
·         Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1.    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
2.    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
·         Audio
1.    Realtek® ALC1220 codec
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
4.    Support for S/PDIF Out
·         LAN
1.    Killer™ E2500 LAN chip (10/100/1000 Mbit)
·         Expansion Slots
1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
2.    2 x PCI Express x16 slots, running at x4 (PCIEX4_1 and PCIEX4_2)
3.    3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
·         Storage Interface
Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.    2 x SATA Express connectors
3.    6 x SATA 6Gb/s connectors
4.    Support for RAID 0, RAID 1, RAID 5, and RAID 10
·         Multi-Graphics Technology
1.    Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16 and PCIEX4_1)
·         USB
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:
1.    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2.    1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
3.    8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers
4.    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
·         Internal I/O Connectors
1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    1 x M.2 Socket 3 connector
4.    2 x SATA Express connectors
5.    6 x SATA 6Gb/s connectors
6.    1 x CPU fan header
7.    1 x water cooling CPU fan header
8.    2 x system fan headers
9.    1 x system fan/water cooling pump header
10.                                               1 x front panel header
11.                                               1 x front panel audio heade
12.                                               1 x S/PDIF Out header
13.                                               2 x USB 3.1 Gen 1 headers
14.                                               2 x USB 2.0/1.1 headers
15.                                               1 x Trusted Platform Module (TPM) header
16.                                               1 x Thunderbolt™ add-in card connector
17.                                               1 x Clear CMOS jumper
·         Back Panel Connectors
1.    1 x PS/2 keyboard/mouse port
2.    1 x DVI-D port
3.    1 x HDMI port
4.    1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5.    1 x USB 3.1 Gen 2 Type-A port (red)
6.    4 x USB 3.1 Gen 1 ports
7.    2 x USB2.0/1.1 ports
8.    1 x RJ-45 port
9.    6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
·         I/O Controller
1.    iTE® I/O Controller Chip
·         H/W Monitoring
1.    Voltage detection
2.    Temperature detection
3.    Fan speed detection
4.    Overheating warning
5.    Fan fail warning
6.    Fan speed control
·         BIOS
1.    2 x 64 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    Support for DualBIOS™
4.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
·         Unique Features
1.    Support for APP Center
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.    Support for 3TB+ Unlock
3.    Support for Q-Flash
4.    Support for Xpress Install
·         Bundle Software
1.    Norton® Internet Security (OEM version)
2.    Intel® Optane™ Memory Ready
·         Operating System
1.    Windows® 10 64-bit (for 7th Generation Intel® Processors)
2.    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
·         Form Factor
1.    ATX Form Factor; 30.5cm x 24.4cm
·         Box Contents
1.    GA-Z270-Gaming 3 motherboard
2.    Four SATA cables
3.    Motherboard driver disk
4.    I/O Shield
5.    User's Manual
6.    One G Connector
7.    Quick Installation Guide
