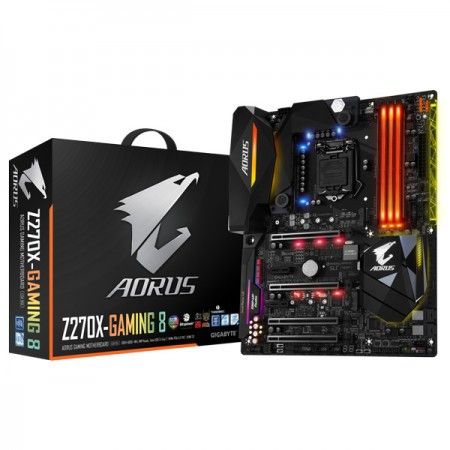

Mainboard Gigabyte Ga-z270x-gaming 8 Socket Lga1151

Thông Số Kỹ Thuật
Bộ vi xử lý    Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset    Intel® Z270 Express Chipset
Khe cắm mở rộng    1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the PCIEX8 slot. When the PCIEX4_1 slot is populated, the PCIEX8 slot will operate at up to x4 mode. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Cổng I/O ở trong    1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x I/O shield audio LED power connector 2 x RGB (RGBW) LED strip extension cable headers 2 x SATA Express connectors 8 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 2 x U.2 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x ECO button 1 x OC button 2 x audio gain control switches 2 x BIOS switches Voltage Measurement Points
Cổng I/O phía sau    1 x PS/2 keyboard/mouse port 2 x MMCX antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support) 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
Lan    1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2)
Âm thanh    Creative® Sound Core 3D chip 2 x JRC NJM2114 and 1 x TI Burr Brown® OPA2134 operational amplifiers Support for Sound Blaster ZxRi High Definition Audio 2/5.1-channel Support for S/PDIF Out
Giao tiếp    Chipset+Intel® Thunderbolt™ 3 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel Chipset+Realtek® USB 3.1 Gen 1 Hub: 4 x USB 3.1 Gen 1 ports available through the internal USB headers Chipset: 5 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
Bộ nhớ    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Kích thước    ATX Form Factor; 30.5cm x 24.4cm
Hãng sản xuất    Gigabyte
