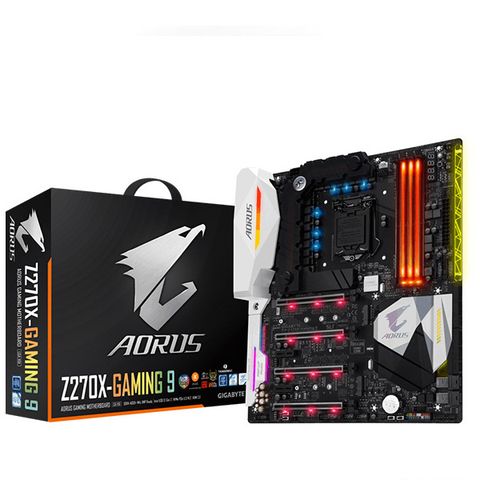

Chuyên cung cấp Mainboard Gigabyte GA-Z270X-Gaming 9 Socket 1151 nhanh lấy liền tại chỗ trước mặt không để lại máy
Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%
Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ
Thông Tin Chi Tiết :
CPU
Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z270 Express Chipset
Bộ nhớ
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
1 x Intel® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.2 version.
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version. (Requires the latest Intel® graphics driver from the GIGABYTE website.)
Support for up to 3 displays at the same time Maximum shared memory of 1 GB
Âm thanh
Creative® Sound Core 3D chip
2 x JRC NJM2114 and 1 x TI Burr Brown® OPA2134 operational amplifiers
Support for 11ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Khe cắm mở rộng
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Giao diện lưu trữ
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
2 x U.2 connectors
3 x SATA Express connectors
6 x SATA 6Gb/s connectors (SATA3 0~5)
Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-12 Internal Connectors," for the installation notices for the U.2, M.2, and SATA connectors.
ASMedia® ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only
Công nghệ đa card đồ họa
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
USB
Chipset+Intel® Thunderbolt™ 3 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset+Realtek® USB 3.1 Gen 1 Hub:
4 x USB 3.1 Gen 1 ports available through the internal USB headers
Chipset:
5 x USB 3.1 Gen 1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x I/O shield audio LED power connector
2 x RGB (RGBW) LED strip extension cable headers
3 x SATA Express connectors
8 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
2 x U.2 connectors
1 x front panel header
1 x front panel audio header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
2 x audio gain control switches
2 x BIOS switches
Voltage Measurement Points
Kết nối bảng phía sau
1 x PS/2 keyboard/mouse port
2 x MMCX antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support)
1 x USB 3.1 Gen 2 Type-A port (red)
5 x USB 3.1 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
Điều khiển I/O
iTE® I/O Controller Chip
Theo dõi phần cứng
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
Support for Q-Flash Plus * The USB flash drive used must be a USB 2.0 flash drive.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel®Processors) * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Hệ số khuôn
E-ATX Form Factor; 30.5cm x 26.4cm
Box Contents
GA-Z270X-Gaming 9 motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Six SATA cables
I/O Shield
One Wi-Fi antenna
One Wi-Fi antenna retention cover
One GC-SLI23P SLI bridge connector
One 3-Way SLI bridge connector
One 4-Way SLI bridge connector
One 2-Way CrossFire bridge connector
Two RGB (RGBW) LED strip extension cables
One Accent Lighting LED Strip
Two thermistor cables
One G Connector
Two Velcro Cable Ties
One pack of back I/O dust covers
