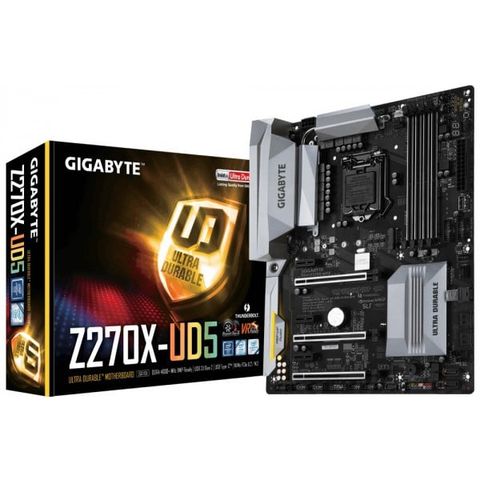

Mainboard Gigabyte GA-Z270X-UD5 Socket 1151

Chuyên cung cấp Mainboard Gigabyte GA-Z270X-UD5 Socket 1151 nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

Thông Tin Chi Tiết :

• CPU
  1. Support for 7^th and 6^th generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® Z270 Express Chipset
• Bộ nhớ
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller:

  1. 1 x Intel^® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
     * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
     * Support for HDMI 1.4 version.

  Maximum shared memory of 1 GB
• Âm thanh
  1. Realtek^® ALC1220 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x1 mode.
  4. 3 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Giao diện lưu trữ
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 1 x U.2 connector
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-9 Internal Connectors," for the installation notices for the U.2, M.2, and SATA connectors.
• Công nghệ đa card đồ họa
  1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
• USB
  Chipset+Intel^® Thunderbolt™ 3 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

  Š Chipset:

  1. 7 x USB 3.1 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 7 x USB 2.0/1.1 ports (2 ports on the back panel, 1 port onboard, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x power information detection header
  4. 1 x M.2 Socket 3 connector
  5. 1 x U.2 connector
  6. 6 x SATA 6Gb/s connectors
  7. 2 x SATA DOM power connectors
  8. 1 x CPU fan header
  9. 1 x water cooling CPU fan header
  10. 3 x system fan headers
  11. 1 x system fan/water cooling pump header
  12. 2 x temperature sensor headers
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x S/PDIF Out header
  16. 2 x USB 3.1 Gen 1 headers
  17. 2 x USB 2.0/1.1 headers
  18. 1 x USB 2.0/1.1 port
  19. 1 x Trusted Platform Module (TPM) header
  20. 1 x Thunderbolt™ add-in card connector
  21. 2 x serial port headers
  22. 1 x Clear CMOS jumper
  23. 1 x power button
  24. 1 x reset button
  25. 1 x Clear CMOS button
  26. 1 x DualBIOS™ switch
  27. 1 x ECO button
  28. 1 x OC button
  29. Voltage Measurement Points
• Kết nối bảng phía sau
  1. 2 x USB 2.0/1.1 port
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support)
  6. 3 x USB 3.1 Gen 1 ports
  7. 1 x USB 3.1 Gen 2 Type-A port (red)
  8. 2 x RJ-45 ports
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     Ambient LED
     AutoGreen
     BIOS Setup
     Color Temperature
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     System Information Viewer
     USB Blocker
     V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. Intel^®Optane™ Memory Ready
  3. cFosSpeed
• Hệ điều hành
  1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
  2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^®Processors)
     * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Hệ số khuôn
  1. ATX Form Factor; 30.5cm x 24.4cm
